POWER SEAT SWITCH INSPECTION

id091300801100

Warning

•  Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Switch the ignition off (LOCK).

2.  Disconnect the negative battery terminal and wait for 1 min. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

4.  Remove the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

5.  Connect the power seat switch connector.

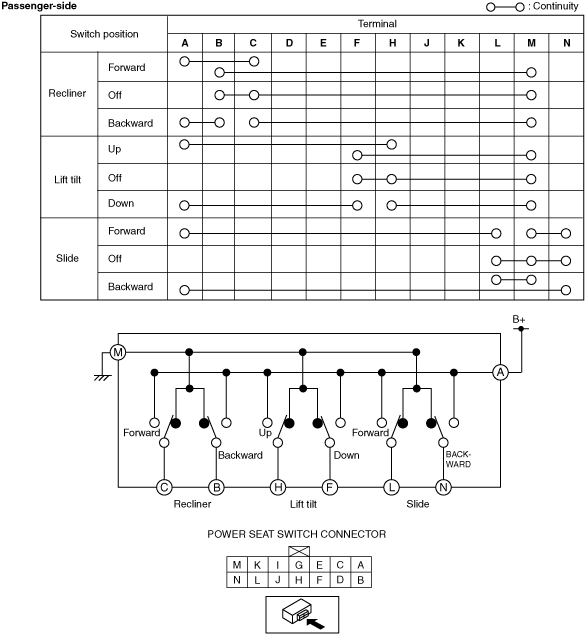

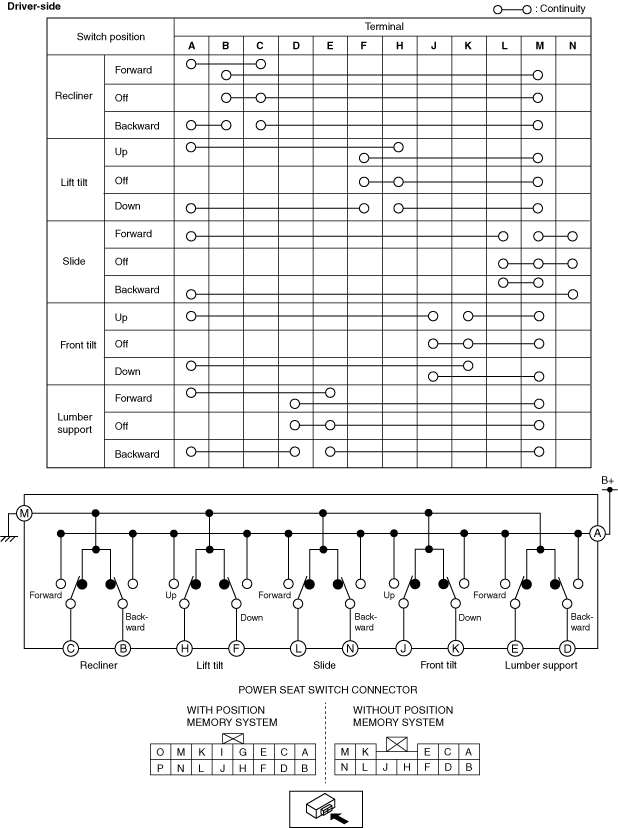

6.  Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

•  If not as specified, replace the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

ac9uuw00010186

ac9wzw00005496
