POSITION MEMORY CONTROL MODULE INSPECTION
id091300811200
1. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.
2. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the position memory control module. (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION.)

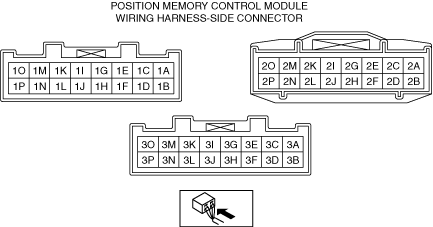

Terminal Voltage Table (Reference)
ac9uuw00009421
|
|
Terminal |
Signal name |
Connected to |
Measured condition |
Voltage (V) |
Inspection item(s) |
|---|---|---|---|---|---|
|
1A
|
—
|
—
|
—
|
—
|
—
|
|
1B
|
—
|
—
|
—
|
—
|
—
|
|
1C
|
CAN_H
|
CAN system related module
|
Terminal used for communication therefore determination based on terminal voltage is not possible.
|
||
|
1E
|
CAN_L
|
CAN system related module
|
Terminal used for communication therefore determination based on terminal voltage is not possible.
|
||
|
1G
|
Ignition power supply
|
METER1 10A fuse
|
Ignition switched ON (engine off)
|
B+
|
• METER1 10A fuse
• Related wiring harness
|
|
Ignition switched OFF (LOCK)
|
1.0 or less
|
||||
|
1H
|
Signal GND
|
Body ground
|
Under any condition
|
1.0 or less
|
Related wiring harness
|
|
1J
|
Power GND
|
Body ground
|
Under any condition
|
1.0 or less
|
Related wiring harness
|
|
1M
|
Power supply
|
INTERIOR 10A fuse
|
Under any condition
|
B+
|
• INTERIOR 10A fuse
• Related wiring harness
|
|
1O
|
Power supply
|
P.SEAT D 30A fuse
|
Under any condition
|
B+
|
• P.SEAT D 30A fuse
• Related wiring harness
|
|
2A
|
Slide switch input (forward)
|
Driver-side power seat switch
|
Press the slide switch to forward
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2B
|
Slide switch input (backward)
|
Driver-side power seat switch
|
Press the slide switch to backward
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2C
|
Tilt switch input (up)
|
Driver-side power seat switch
|
Press the tilt switch to up
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2D
|
Tilt switch input (down)
|
Driver-side power seat switch
|
Press the tilt switch to down
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2E
|
Lift switch input (up)
|
Driver-side power seat switch
|
Press the lift switch to up
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2F
|
Lift switch input (down)
|
Driver-side power seat switch
|
Press the lift switch to down
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2G
|
Recliner switch input (forward)
|
Driver-side power seat switch
|
Press the recliner switch to forward
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2H
|
Recliner switch input (backward)
|
Driver-side power seat switch
|
Press the recliner switch to backward
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2I
|
Signal GND input
|
Driver-side power seat switch
|
Under any condition
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
2J
|
Signal GND input
|
Position memory switch
|
Under any condition
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
2K
|
Set switch input
|
Position memory switch
|
Press the set switch
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2L
|
Memory switch 1 input
|
Position memory switch
|
Press the memory switch 1
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
2M
|
Memory switch 2 input
|
Position memory switch
|
Press the memory switch 2
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
4.8 or more
|
||||
|
3A
|
Slide motor output (forward)
|
Slide motor
|
While slide motor is moving to forward
|
B+
|
• Slide motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3B
|
Slide motor output (backward)
|
Slide motor
|
While slide motor is moving to backward
|
B+
|
• Slide motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3C
|
Tilt motor output (up)
|
Tilt motor
|
While tilt motor is moving to up
|
B+
|
• Tilt motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3D
|
Tilt motor output (down)
|
Tilt motor
|
While tilt motor is moving to down
|
B+
|
• Tilt motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3E
|
Lift motor output (up)
|
Lift motor
|
While lift motor is moving to up
|
B+
|
• Lift motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3F
|
Lift motor output (down)
|
Lift motor
|
While lift motor is moving to down
|
B+
|
• Lift motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3G
|
Recliner motor output (forward)
|
Recliner motor
|
While recliner motor is moving to forward
|
B+
|
• Recliner motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3H
|
Recliner motor output (backward)
|
Recliner motor
|
While recliner motor is moving to backward
|
B+
|
• Recliner motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3I
|
Slide position sensor power supply
|
Slide position sensor
|
Slide motor moving
|
B+
|
• Slide position sensor
• Related wiring harnesses
|
|
Slide motor stopped
|
1.0 or less
|
||||
|
3J
|
Slide motor pulse
|
Slide position sensor
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Slide position sensor
• Related wiring harnesses
|
|
Low output: 1.0 or less
|
|||||
|
Slide motor stopped
|
1.0 or less or 4.8 or more
|
||||
|
3K
|
Tilt position sensor power supply
|
Tilt position sensor
|
Tilt motor moving
|
B+
|
• Tilt motor and position sensor
• Related wiring harnesses
|
|
Tilt motor stopped
|
1.0 or less
|
||||
|
3L
|
Tilt motor pulse
|
Tilt position sensor
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Tilt motor and position sensor
• Related wiring harnesses
|
|
Low output: 1.0 or less
|
|||||
|
Tilt motor stopped
|
1.0 or less or 4.8 or more
|
||||
|
3M
|
Lift position sensor power supply
|
Lift position sensor
|
Lift motor moving
|
B+
|
• Lift motor and position sensor
• Related wiring harnesses
|
|
Lift motor stopped
|
1.0 or less
|
||||
|
3N
|
Lift motor pulse
|
Lift position sensor
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Lift motor and position sensor
• Related wiring harnesses
|
|
Low output: 1.0 or less
|
|||||
|
Lift motor stopped
|
1.0 or less or 4.8 or more
|
||||
|
3O
|
Recliner position sensor power supply
|
Recliner position sensor
|
Recliner motor moving
|
B+
|
• Recliner motor and position sensor
• Related wiring harnesses
|
|
Recliner motor stopped
|
1.0 or less
|
||||
|
3P
|
Recliner motor pulse
|
Recliner position sensor
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Recliner motor and position sensor
• Related wiring harnesses
|
|
Low output: 1.0 or less
|
|||||
|
Recliner motor stopped
|
1.0 or less or 4.8 or more
|
||||
