SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION

id091300966500

Without Walk-in Switch

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

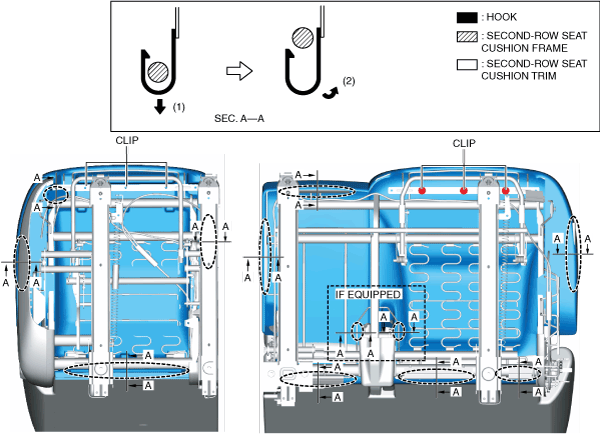

3.  Remove the clips.

ac9uuw00009514

4.  Move the hooks in the order of arrows (1) and (2) shown in the figure and remove those from the second-row seat cushion frame.

5.  Remove the second-row seat cushion.

6.  Install in the reverse order of removal.
