SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE

id091400112900

Caution
•  The personalization feature may not be set correctly if [Not Adopted.] or [Not equipped] is selected in the setting displayed on the M-MDS. Do not select [Not Adopted.] or [Not equipped] in the setting displayed on the M-MDS.
•  Settings of some personalization features displayed on the M-MDS cannot be switched depending on the vehicle specification.

Advanced Keyless Entry System


Using M-MDS

1.  Connect the M-MDS to DLC-2.

2.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

1.  Select the “Module Programming”.
2.  Select “Programmable Parameters”.

3.  Select menu in the SSU.

4.  Select an item name, and then select option.

M-MDS display

Function

Setting contents

Control unit
Advanced keyless function.*1
The advanced keyless entry system and push button start system functions can be disabled.
Enabled. / Disabled.
Start stop unit
Walk Away Lock.
The out-of-area (reception area) type auto lock function can be set.
OFF / ON
Start stop unit
Auto Re-lock Time.
The operation start time of the auto re-lock function can be changed.
30 seconds / 60 seconds / 90 seconds
Start stop unit
Lock Beep Volume.
The keyless beeper volume can be adjusted.
Off / Low / Medium / High
Start stop unit

*1  :Because the push button start system function has been disabled, to start the engine press the upper part of the remote transmitter against the center of the push button start.

Setting method by operation of remote transmitter button

•  The following setting can be changed by operation of the remote transmitter button.

Function

Initial setting

Setting content

Control unit
Keyless Lock Beep Volume.
Medium / off*1
High/Medium/Low/Off
Start stop unit
*1  :The initialization setting varies depending on the market and specification.

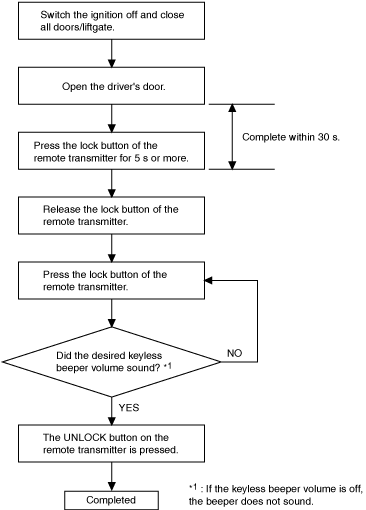

•  Change the setting for the keyless beeper volume referring to the following procedure:
Note
•  If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.
?  The ignition is switched to ACC or ON (engine off or on).
?  The driver's door is closed.
?  The liftgate is open.
?  The remote transmitter operation is not performed for approx. 10 s.
?  The UNLOCK button on the remote transmitter is pressed.
?  A request switch is pressed.
am3zzw00014027


Using center display

•  For the setting procedure of the personalization features, refer to [CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE].(See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Keyless Entry System


Using M-MDS

1.  Connect the M-MDS to DLC-2.

2.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

1.  Select the “Module Programming”.
2.  Select “Programmable Parameters”.

3.  Select menu in the SSU.

4.  Select an item name, and then select option.

M-MDS display

Function

Setting contents

Control unit
Advanced keyless function.*1
The keyless entry system and push button start system functions can be disabled.
Enabled. / Disabled.
Start stop unit
Auto Re-lock Time.
The operation start time of the auto re-lock function can be changed.
30 seconds / 60 seconds / 90 seconds
Start stop unit
*1  :Because the push button start system function has been disabled, to start the engine press the upper part of the remote transmitter against the center of the push button start.


Power Saving Function (With Remote Transmitter Type B)

•  After you have turned on the power saving function according to the following procedure, the hazard warning lights and sound operate*1 one time.
?  Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.
?  Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).
?  Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.
•  After you have turned off the power saving function according to the following procedure, the hazard warning lights and sound operate*1 one time.
?  Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.
?  Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.
?  Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).
*1  :With advanced keyless entry system
