FRONT OUTER HANDLE REMOVAL/INSTALLATION

id091400510100

Driver's Side

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(4)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(5)  Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

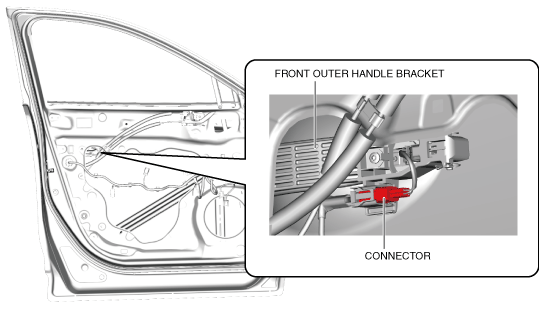

4.  Disconnect the keyless antenna connector. (with advanced keyless entry system)

ac9uuw00005528

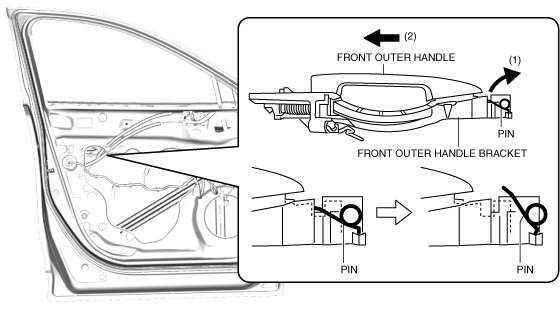

5.  While pulling the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) to detach the front outer handle bracket pin and the front outer handle.

ac9uuw00005529

6.  Remove the front outer handle in the direction of the arrow shown in the figure.

am3uuw00010000

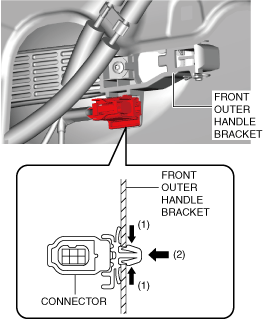

7.  While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)

ac9uuw00005530

8.  Loosen the screw securing the front outer handle bracket.

ac9uuw00005531

Note

•  The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

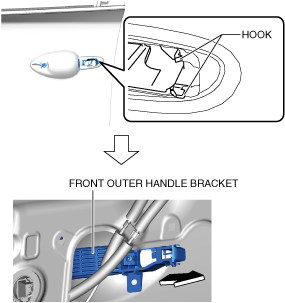

9.  Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hooks from the body.

ac9uuw00005532

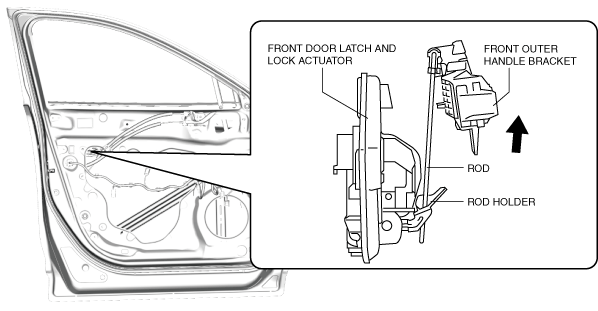

10.  Lift the front outer handle bracket in the direction of arrow shown in the figure to pull the rod out of the rod holder. (See Front outer handle bracket installation note.)

ac9uuw00005533

11.  Remove the front outer handle bracket.

12.  Remove the handle seat from the body.

ac9uuw00005534

13.  Install in the reverse order of removal.

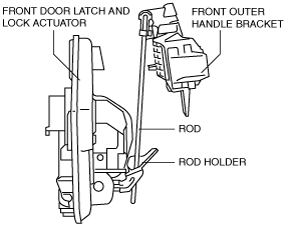

Front outer handle bracket installation note

•  To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

am3uuw00010006

Passenger's Side

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(4)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

4.  Remove the service hole cover.

ac9uuw00005535

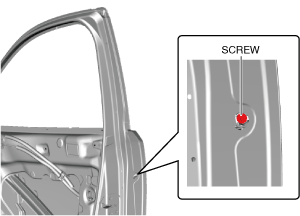

5.  Loosen the screw from the front outer handle bracket.

ac9uuw00005536

Note

•  The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

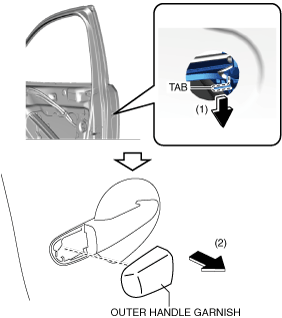

6.  While pressing the front outer handle bracket tab in the direction of arrow (1) shown in the figure, pull the outer handle garnish in the direction of arrow (2) to detach the front outer handle bracket from the outer handle garnish.

ac9uuw00005537

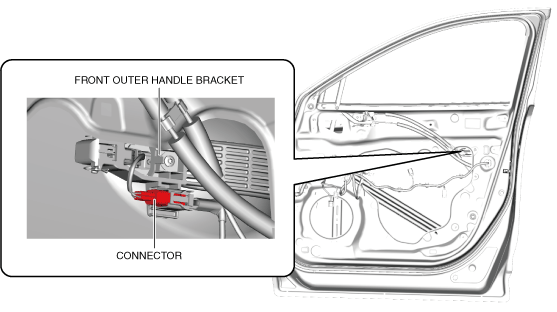

7.  Disconnect the keyless antenna connector. (with advanced keyless entry system)

ac9uuw00005538

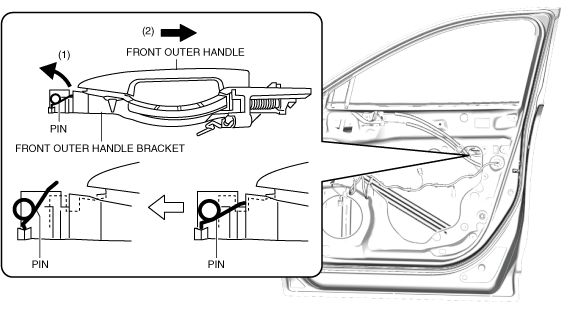

8.  While pulling the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) to detach the front outer handle bracket pin and the front outer handle.

ac9uuw00005539

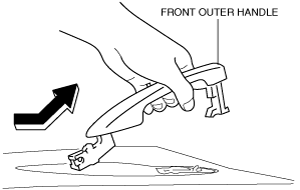

9.  Remove the front outer handle in the direction of the arrow shown in the figure.

am2zzw00007881

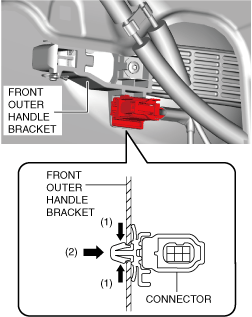

10.  While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)

ac9uuw00005540

11.  Loosen the screw securing the front outer handle bracket.

ac9uuw00005541

Note

•  The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

12.  Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hooks from the body.

ac9uuw00005542

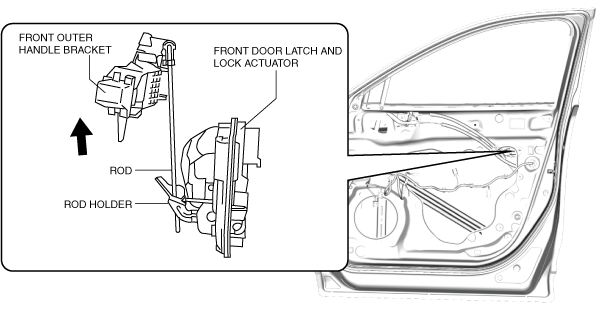

13.  Lift the front outer handle bracket in the direction of arrow shown in the figure to pull the rod out of the rod holder. (See Front outer handle bracket installation note.)

ac9uuw00005543

14.  Remove the front outer handle bracket.

15.  Remove the handle seat from the body.

ac9uuw00005544

16.  Install in the reverse order of removal.

Front outer handle bracket installation note

•  To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

ac9uuw00007412
