REAR OUTER HANDLE REMOVAL/INSTALLATION

id091400510200

1.  Fully close the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

ac9uuw00005518

5.  Remove the service hole cover.

ac9uuw00005519

6.  Remove the service hole cover.

ac9uuw00005520

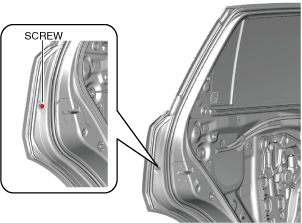

7.  Loosen the screw from the rear outer handle bracket.

ac9uuw00005521

Note

•  The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

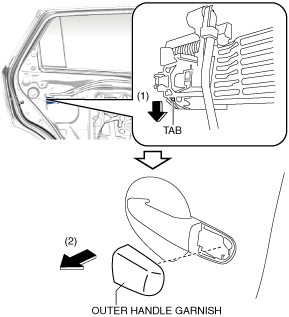

8.  While pressing the rear outer handle bracket tab in the direction of arrow (1) shown in the figure, pull the outer handle garnish in the direction of arrow (2) to detach the rear outer handle bracket from the outer handle garnish.

ac9uuw00005522

9.  Remove the outer handle garnish from the rear outer handle bracket.

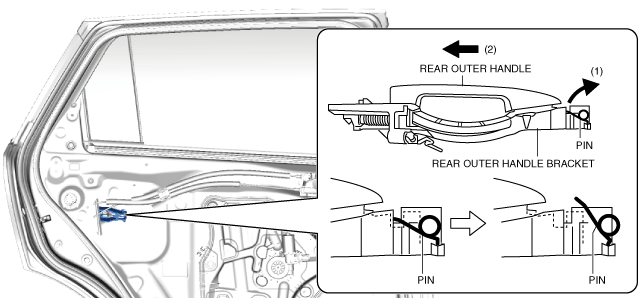

10.  While pulling the rear outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the rear outer handle in the direction of arrow (2) to detach the rear outer handle bracket pin from the rear outer handle.

ac9uuw00005523

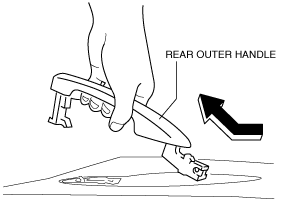

11.  Remove the rear outer handle in the direction of the arrow shown in the figure.

am3uuw00010012

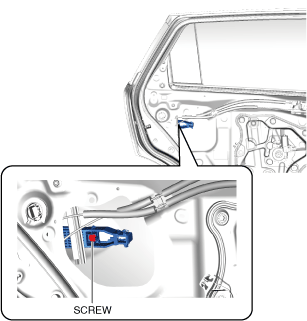

12.  Loosen the screw from the rear outer handle bracket.

ac9uuw00005524

Note

•  The screw cannot be removed because the rear outer handle bracket has a stopper which prevents the screw from falling.

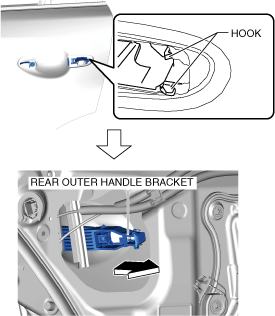

13.  Pull the rear outer handle bracket in the direction of arrow shown in the figure and detach the rear outer handle bracket hooks from the body.

ac9uuw00005525

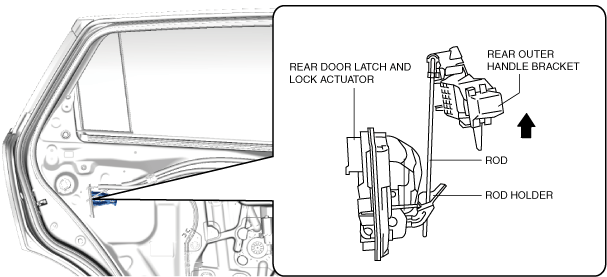

14.  Lift the rear outer handle bracket in the direction of arrow shown in the figure to pull the rod out of the rod holder. (See Rear Outer Handle Bracket Installation Note.)

ac9uuw00005526

15.  Remove the rear outer handle bracket.

16.  Remove the handle seat from the body.

ac9wzw00005246

17.  Install in the reverse order of removal.

Rear Outer Handle Bracket Installation Note

•  To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

am3uuw00010017
