FRONT DOOR LOCK ACTUATOR INSPECTION

id091400511300

1.  Perform the front door glass removal preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(3)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(4)  Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

(5)  Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(6)  Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

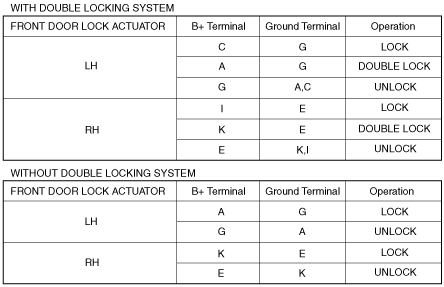

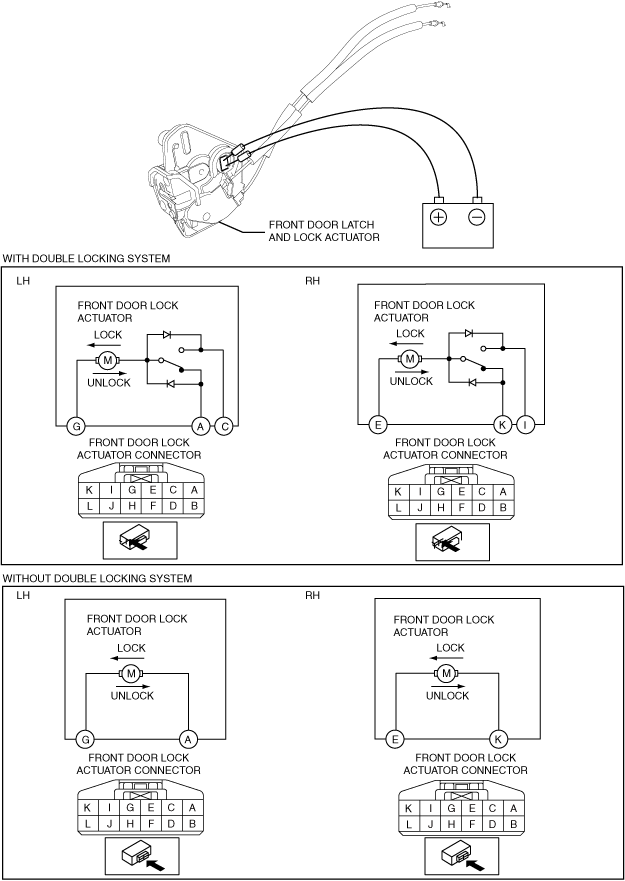

4.  Apply battery positive voltage and connect the ground to the front door lock actuator terminals as indicated in the table below and verify the operation condition.

ac5jjw00000237

ac9wzw00004272

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
