REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400511700

1.  Fully close the rear door glass.

2.  Operate the door lock actuator using the following procedure and deplete the energy stored in the backup power supply.

Note

•  If the energy stored in the backup power supply has already been depleted, the door lock actuator does not operate. As this does not indicate an improper procedure, continue to perform the procedure as indicated.

(1)  Remove the D.LOCK 25A fuse.

(2)  Close the front door (driver's side)

(3)  Repeat the lock/unlock operation of the door lock switch (driver's side) until all the door lock knobs do not move. (With door lock switch)

(4)  Repeat the lock/unlock operation of the door lock knob (driver's side) until the door lock knobs other than the driver's seat do not move. (Without door lock switch)

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

5.  Remove the rear inner handle. (See INNER HANDLE REMOVAL/INSTALLATION.)

6.  Disconnect the connector.

ac9wzw00004470

7.  Remove the service hole cover.

ac9wzw00004471

8.  Remove the door lock knob cable and the inner handle cable from the clip.

ac9uuw00005502

9.  Remove the screws.

ac9uuw00005503

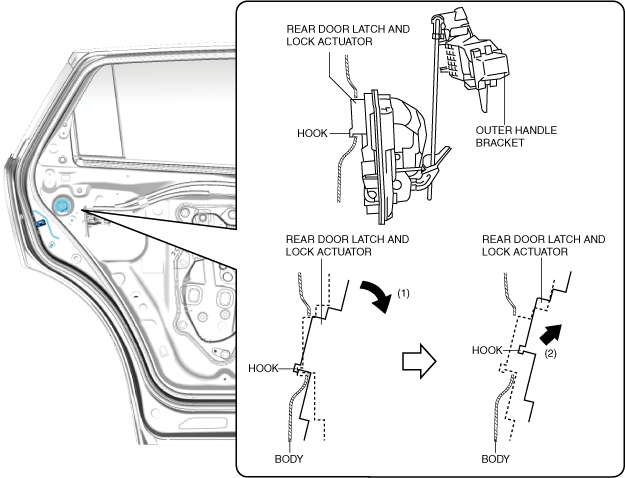

10.  Tilt the rear door latch and lock actuator in the direction of arrow (1) shown in the figure and lift it in the direction of arrow (2) to detach the hook of the rear door latch and lock actuator.

ac9uuw00005504

11.  Move the rear door latch and lock actuator down in the direction of arrow shown in the figure to remove the rod from the rod holder.

am2zzw00007852

12.  Remove the rear door latch and lock actuator.

13.  Install in the reverse order of removal.
