IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING

id091400514700


Foreword

•  When replacing immobilizer system-related parts or programming an additional remote transmitter, or clearing a remote transmitter, program the immobilizer system-related parts so that the system operates normally. For immobilizer system-related parts programming, select the programming procedures according to the service. (See Selection of Procedure for Immobilizer System-Related Parts Programming.)
Caution
•  Perform all the steps in the correct order because the engine may not start if any step of the programming procedure is skipped.
•  If any metallic or magnetic object is near the remote transmitter, communication between the remote transmitter and the vehicle may be obstructed, resulting in a failure to program the immobilizer system-related parts. Remove any metallic or magnetic objects, such as key holders, from the remote transmitter when programming immobilizer system-related parts.
•  If any of the following devices are inside the vehicle, programming of immobilizer system-related parts may fail. Do not bring any of the following devices or similar products inside the vehicle when programming immobilizer system-related parts.
?  M-MDS
?  Personal computer
?  Devices that can send/receive radio waves
•  If the engine is started during immobilizer system-related parts programming, the programming mode cancels. Therefore, do not start the engine unless indicated in the procedure. Repeat the procedure from the beginning if the engine is started during the immobilizer system-related parts programming.
•  If a remote transmitter is near the vehicle during immobilizer system-related parts programming, it may be programmed mistakenly. Keep the remote transmitter 1 m away from the vehicle unless indicated in the procedure.
•  The SSU in the procedure indicates the start stop unit. In addition, the advanced key indicates the remote transmitter.
•  To prevent a failure in programming the immobilizer system-related parts, turn off (disable) the pacemaker radio wave interference prevention function and the power saving function of the remote transmitter when programming immobilizer system-related parts.
Note
•  Two or more remote transmitters must be programmed for the engine to start.
•  A maximum of six remote transmitters can be programmed to one vehicle.
•  The number of programmed key ID numbers can be verified using the M-MDS.
•  Do not select any screen menu other than the ones indicated in the procedure during M-MDS operation.
•  When programming the immobilizer system-related parts, the incode must be searched.

Selection of Procedure for Immobilizer System-Related Parts Programming

1.  Verify that the ROOM fuse, AT fuse, and SRS2/ESCL fuse are installed.

2.  Select the applicable programming procedure from the service content of the immobilizer system-related parts.

Programming Procedure Types for Immobilizer System-Related Parts Table

No.

Service

Programming procedure
1
When programming additional remote transmitter*1
(See No.1 Additional Remote Transmitter Programming Procedure (Using the M-MDS).)
2
When PCM is replaced
(See No.2 Programming Procedure After PCM Replacement.)
3
•  When start stop unit is replaced
•  When PCM and start stop unit are replaced simultaneously
(See No.3 Programming Procedure When Start Stop Unit Is Replaced Or When Start Stop Unit And Pcm Are Replaced Simultaneously.)
4
•  When remote transmitter is replaced
•  When remote transmitter is lost
(See No.4 Procedure For Remote Transmitter Clearing And Newly Programming.)

*1  :Have a remote transmitter that can start the engine.

3.  If servicing is performed after turning off (disabling) the pacemaker radio wave interference prevention function and the power saving function of the remote transmitter, turn on (enable) the functions.


M-MDS Connecting Procedure

Note
•  Do not place the M-MDS in the vehicle while programming the immobilizer system.

1.  Fully lower the door glass.

2.  Connect the M-MDS to the DLC-2.

3.  Place the M-MDS outside the vehicle.

Caution
•  Cover the vehicle body with a rag so as not to damage the vehicle body with the cable.

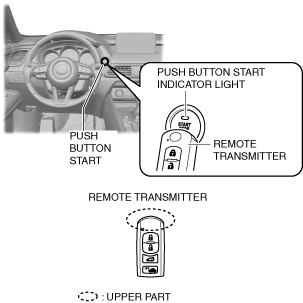

Procedure for communication between coil antenna and remote transmitter

•  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter against the center of the push button start.
ac9wzw00003783
Note
•  The coil antenna is integrated with the push button start.

No.1 Additional Remote Transmitter Programming Procedure (Using the M-MDS)

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Vehicle condition
•  There is a remote transmitter that can start the engine.
Note
•  If a remote transmitter cannot be programmed, verify the number of programmed remote transmitter using the M-MDS.
•   Perform the DTC inspection for the start stop unit using the M-MDS.

Procedure

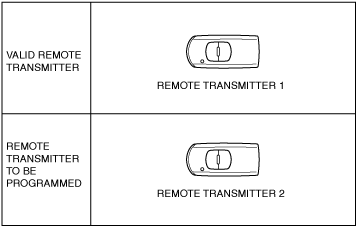

am3zzw00013739

Step

Procedure

Action after procedure
1
VERIFY THAT REMOTE TRANSMITTER WHICH CAN START ENGINE IS REMOTE TRANSMITTER 1
1.  Switch the ignition ON (engine off) using remote transmitter 1.
2.  Verify that the security light illuminates for approx. 3 s, and then turns off.
3.  Switch the ignition off.
Go to the next step.
2
PERFORM ADDITIONAL PROGRAMMING OF REMOTE TRANSMITTER 2
1.  Connect the M-MDS to the DLC-2.
2.  Switch the ignition ON (engine off) using remote transmitter 1.
3.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.
1.  “Body”
2.  “Security”
3.  “PATS Functions”
4.  Then, select the following from the screen menu.
•  Program Additional Advanced Key
5.  Input the start stop unit incode and cancel the security access according to the directions on the M-MDS screen.
Note
•  Depending on the vehicle specification, a specified time is required until the screen changes to the incode input screen.
The horn sounds two times when the incode can be input.
•  “Security access permitted” is displayed on the M-MDS screen.
6.  Depress the brakes according to the instructions on the M-MDS, and press remote transmitter 2 against the push button start while the push button start indicator light (green) is flashing. (See Procedure for communication between coil antenna and remote transmitter.)
7.  Verify that the remote transmitter 2 programming is completed on the M-MDS screen, and release the brake pedal.
8.  Are there other remote transmitters to be programmed?
Yes
Change the remote transmitter and repeat Step 2.
No
Switch the ignition off, then go to the next step.
3
PERFORM IMMOBILIZER SYSTEM FUNCTION VERIFICATION
Note
•  Each remote transmitter is brought inside the vehicle one at a time to start the engine.
1.  Depress the brake pedal.
2.  After pressing remote transmitter 2 against the push button start, press the push button start to start the engine. (See Procedure for communication between coil antenna and remote transmitter.)
3.  Are there other remote transmitters to be programmed?
Yes
Change the key and repeat Step 3.
No
Go to the next step.
4
VERIFY THAT REMOTE TRANSMITTER IS PROGRAMMED
Place only the programmed remote transmitter on the passenger seat and verify that the engine can be started with the programmed key.
Go to the next step.
5
M-MDS COMPLETION
1.  Wait for 5 s or more after the M-MDS is completed and switch the ignition off.
Procedure is completed.


No.2 Programming Procedure After PCM Replacement

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Vehicle condition
•  There is a remote transmitter that can start the engine.

Procedure

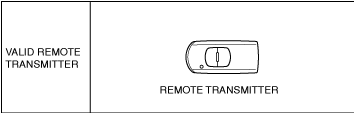

am3zzw00013740

Step

Procedure

Action after procedure
1
REPLACE PCM
Refer to PCM REMOVAL/INSTALLATION to perform PCM replacement.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
Go to the next step.
2
PERFORM PARAMETER RESET
1.  Connect the M-MDS to the DLC-2.
2.  Switch the ignition ON (engine off).
Note
•  Although the security indicator light illuminates for approx. 3 s and then turns off or flashes, continue to perform the procedure as indicated.
3.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.
1.  “Body”
2.  “Security”
3.  “PATS Functions”
4.  Then, select the following from the screen menu.
•  “Parameter Reset”
5.  Input the start stop unit and PCM incode and cancel the security access according to the directions on the M-MDS screen.
Note
•  Depending on the vehicle specification, a specified time is required until the screen changes to the incode input screen.
The horn sounds two times when the incode can be input.
•  “Security access permitted” is displayed on the M-MDS screen.
6.  Perform the operation according to the directions on the M-MDS screen.
Note
•  “Parameter reset completed” is displayed on the M-MDS screen.
7.  Select “No” according to the directions on the M-MDS.
Caution
•  Because the procedure switches to the procedure for key ID number clearing, if “Yes” is selected on the M-MDS screen, select “No”.
Go to the next step.
3
M-MDS COMPLETION
1.  Wait for 5 s or more after the M-MDS is completed and switch the ignition off.
Go to the next step.
4
PERFORM IMMOBILIZER SYSTEM FUNCTION VERIFICATION
1.  Bring each remote transmitter into the vehicle one at a time and switch the ignition ON (engine off).
2.  Verify that the security indicator light illuminates, and switch the ignition off.
3.  Are there other remote transmitters to be programmed?
Yes
Change the key and repeat Step 4.
No
Go to the next step.
5
VERIFY PARAMETER RESET IS COMPLETED
Note
•  Each remote transmitter is brought inside the vehicle one at a time to start the engine.
1.  Place only the programmed remote transmitter on the passenger seat and verify that the engine starts.
2.  Does engine start?
Yes
Procedure is completed.
No
Perform the related DTC inspection to repair the malfunctioning part.


No.3 Programming Procedure When Start Stop Unit Is Replaced Or When Start Stop Unit And Pcm Are Replaced Simultaneously

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
•  Because it is necessary to program two or more remote transmitters to the immobilizer system-related parts to start the engine, perform the remote transmitter programming after clearing the remote transmitter.
Note
•  Before beginning the procedure, verify that the customer has provided all of the remote transmitters for the vehicle.
•  The engine cannot be started unless two or more remote transmitters are programmed after the replacement.
Vehicle condition
•  Have two or more remote transmitters to be programmed after the replacement.

Procedure

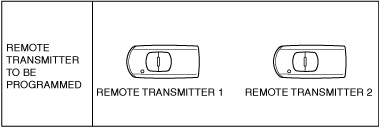

ac5wzw00002387

Step

Procedure

Action after procedure
1
REPLACE START STOP UNIT AND REPLACE START STOP UNIT/PCM SIMULTANEOUSLY
Refer to START STOP UNIT REMOVAL/INSTALLATION to perform start stop unit replacement.
(See START STOP UNIT REMOVAL/INSTALLATION.)
Refer to PCM REMOVAL/INSTALLATION to perform PCM replacement.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
Go to the next step.
2
PERFORM PARAMETER RESET
1.  Connect the M-MDS to the DLC-2.
2.  Remove the remote transmitter from the vehicle (keep them 1 m or more from the vehicle) and switch the ignition ON (engine off) according to the directions on the M-MDS screen.
3.  Select the following from the M-MDS initial screen.
1.  “Body”
2.  “Special Ignition ON”
4.  Press the push button start and switch the ignition ON (engine off) according to the instructions on the M-MDS.
5.  Select the following from the M-MDS initial screen.
1.  “Body”
2.  “Security”
3.  “PATS Functions”
6.  Then, select the following from the screen menu.
•  “Parameter Reset”
7.  Input the start stop unit and PCM incode and cancel the security access according to the directions on the M-MDS screen.
Note
•  Depending on the vehicle specification, a specified time is required until the screen changes to the incode input screen.
The horn sounds two times when the incode can be input.
•  “Security access permitted” is displayed on the M-MDS screen.
8.  Perform the operation according to the directions on the M-MDS screen.
Note
•  “Parameter reset completed” is displayed on the M-MDS screen.
9.  Select “Yes” according to the directions on the M-MDS.
Caution
•  Because the procedure will not switch to the procedure for key ID number clearing, if “No” is selected on the M-MDS screen, select “Yes”.
Go to the next step.
3
PERFORM KEY ID NUMBER CLEARING
1.  Perform the key ID number clearing and switch the ignition off according to the directions on the M-MDS screen.
Go to the next step.
4
PERFORM REMOTE TRANSMITTER 1 PROGRAMMING
1.  Switch the ignition ON (engine off).
Note
•  Although the security indicator light illuminates for approx. 10 s and then turns off or flashes, continue to perform the procedure as indicated.
2.  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter 1 against the center of the push button start. (See Procedure for communication between coil antenna and remote transmitter.)
3.  Verify that remote transmitter 1 programming is completed on the M-MDS screen.
Note
•  When the programming is completed, the security indicator light turns off and DTC 21 is displayed after approx. 1 min.
•  If the programming fails, the security indicator light flashes and DTC 13 is displayed after approx. 1 min.
Switch the ignition off, then go to the next step.
5
PERFORM REMOTE TRANSMITTER 2 PROGRAMMING
1.  Switch the ignition ON (engine off).
2.  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter 2 against the center of the push button start. (See Procedure for communication between coil antenna and remote transmitter.)
3.  Verify that the remote transmitter 2 programming is completed on the M-MDS screen.
Note
•  If the programming fails, the security indicator light flashes and DTC 13 is displayed after approx. 1 min.
4.  Are there other remote transmitters to be programmed?
Yes
If other remote transmitters are programmed, repeat Step 5.
No
Go to the next step.
6
M-MDS COMPLETION
1.  Wait for 5 s or more after the M-MDS is completed and switch the ignition off
Go to the next step.
7
PERFORM IMMOBILIZER SYSTEM FUNCTION VERIFICATION (REMOTE TRANSMITTER 1)
Note
•  Each remote transmitter is brought inside the vehicle one at a time to start the engine.
1.  Depress the brake pedal.
2.  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter 1 against the center of the push button start. (See Procedure for communication between coil antenna and remote transmitter.)
3.  After the push button start indicator light (green) goes from flashing to illumination, press the push button start to start the engine.
Switch the ignition off, then go to the next step.
8
PERFORM IMMOBILIZER SYSTEM FUNCTION VERIFICATION (REMOTE TRANSMITTER 2)
Note
•  Each remote transmitter is brought inside the vehicle one at a time to start the engine.
1.  Depress the brake pedal.
2.  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter 2 against the center of the push button start. (See Procedure for communication between coil antenna and remote transmitter.)
3.  After the push button start indicator light (green) goes from flashing to illumination, press the push button start to start the engine.
Yes
If there are other remote transmitters to be programmed, repeat Step 7.
No
Go to the next step.
9
VERIFY THAT REMOTE TRANSMITTER IS PROGRAMMED
Note
•  Each remote transmitter is brought inside the vehicle one at a time to start the engine.
1.  Place only the programmed remote transmitter on the passenger seat and verify that the engine starts.
2.  Does engine start?
Yes
Procedure is completed.
No
Perform the related DTC inspection to repair the malfunctioning part.


No.4 Procedure For Remote Transmitter Clearing And Newly Programming

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
•  Because it is necessary to program two or more remote transmitters to the immobilizer system-related parts to start the engine, perform the remote transmitter programming after clearing the remote transmitter.
Vehicle condition

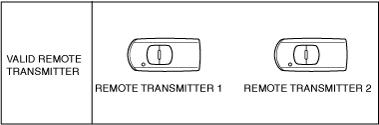

•  Have two remote transmitters to be programmed.

Procedure

ac5wzw00002388

Step

Procedure

Action after procedure
1
PERFORM KEY ID NUMBER CLEARING
1.  Connect the M-MDS to the DLC-2.
2.  Switch the ignition ON (engine off).
3.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.
1.  “Body”
2.  “Security”
3.  “PATS Functions”
4.  Then, select the following from the screen menu.
•  “Advanced Key Code Erase”
5.  Input the start stop unit incode and cancel the security access according to the directions on the M-MDS screen.
Note
•  Depending on the vehicle specification, a specified time is required until the screen changes to the incode input screen.
The horn sounds two times when the incode can be input.
•  “Security access permitted” is displayed on the M-MDS screen.
6.  Perform the remote transmitter clearing according to the directions on the M-MDS.
Note
•  “Advanced key clearing completed” is displayed on the M-MDS screen.
Switch the ignition off, then go to the next step.
2
PERFORM REMOTE TRANSMITTER 1 PROGRAMMING
1.  Switch the ignition ON (engine off).
Note
•  Although the security indicator light illuminates for approx. 10 s and then turns off or flashes, continue to perform the procedure as indicated.
2.  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter 1 against the center of the push button start. (See Procedure for communication between coil antenna and remote transmitter.)
3.  Verify that the remote transmitter 1 programming is completed on the M-MDS screen.
Note
•  When the programming is completed, the security indicator light turns off and DTC 21 is displayed after approx. 1 min.
•  If the programming fails, the security indicator light flashes and DTC 13 is displayed after approx. 1 min.
Switch the ignition off, then go to the next step.
3
PERFORM REMOTE TRANSMITTER 2 PROGRAMMING
1.  Switch the ignition ON (engine off).
Note
•  Although the security indicator light illuminates for approx. 10 s and then turns off or flashes, continue to perform the procedure as indicated.
2.  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter 2 against the center of the push button start. (See Procedure for communication between coil antenna and remote transmitter.)
3.  Verify that the remote transmitter 2 programming is completed on the M-MDS screen.
Note
•  If the programming fails, the security indicator light flashes and DTC 13 is displayed after approx. 1 min.
4.  Are there other remote transmitters to be programmed?
Yes
Change the key and repeat Step 3.
No
Go to the next step.
4
M-MDS COMPLETION
1.  Wait for 5 s or more after the M-MDS is completed and switch the ignition off.
Go to the next step.
5
PERFORM IMMOBILIZER SYSTEM FUNCTION VERIFICATION (REMOTE TRANSMITTER 1)
Note
•  Each remote transmitter is brought inside the vehicle one at a time to start the engine.
1.  Depress the brake pedal.
2.  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter 1 against the center of the push button start. (See Procedure for communication between coil antenna and remote transmitter.)
3.  After the push button start indicator light (green) goes from flashing to illumination, press the push button start to start the engine.
Switch the ignition off, then go to the next step.
6
PERFORM IMMOBILIZER SYSTEM FUNCTION VERIFICATION (REMOTE TRANSMITTER 2)
Note
•  Each remote transmitter is brought inside the vehicle one at a time to start the engine.
1.  Depress the brake pedal.
2.  While the push button start indicator light (green) is flashing, press the top part of the remote transmitter 2 against the center of the push button start. (See Procedure for communication between coil antenna and remote transmitter.)
3.  After the push button start indicator light (green) goes from flashing to illumination, press the push button start to start the engine.
Yes
If there are other remote transmitters to be programmed, repeat Step 5.
No
Go to the next step.
7
VERIFY THAT REMOTE TRANSMITTER IS PROGRAMMED
Note
•  Each remote transmitter is brought inside the vehicle one at a time to start the engine.
1.  Place only the programmed remote transmitter on the passenger seat and verify that the engine starts.
2.  Does engine start?
Yes
Procedure is completed.
No
Perform the related DTC inspection to repair the malfunctioning part.
