REAR DOOR GARNISH REMOVAL

id091600443800

Front Side

1.  Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

2.  Open the front door.

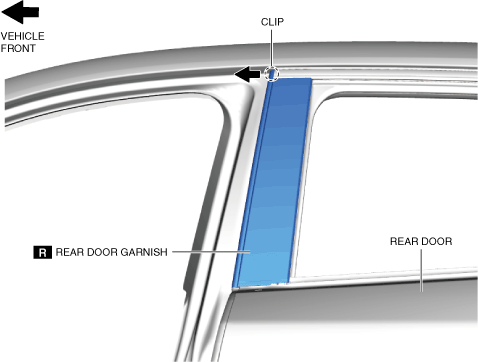

3.  Detach the seal rubber clip from the rear sash molding.

ac9uuw00007194

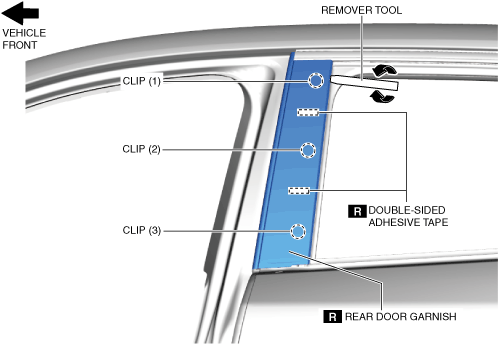

4.  Move the remover tool in the direction of the arrows shown in the figure and while peeling off the double-sided adhesive tape, detach the rear door garnish clips (1), (2) and (3) from the rear door starting from the top of the vehicle.

ac9uuw00007195

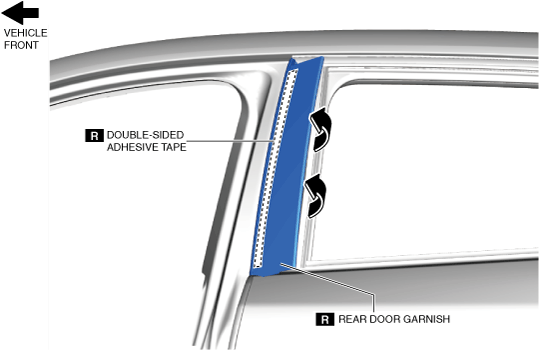

5.  Move the rear door garnish in the direction of the arrows shown in the figure and peel off the double-sided adhesive tape.

ac9uuw00007196

6.  Remove the rear door garnish.

Rear Side

1.  Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

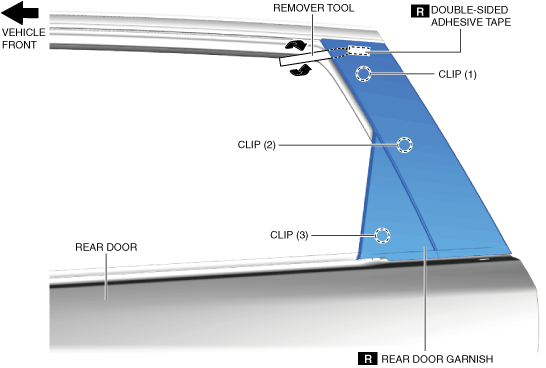

2.  Move the remover tool in the direction of the arrows shown in the figure and while peeling off the double-sided adhesive tape, detach the rear door garnish clips (1), (2) and (3) from the rear door starting from the top of the vehicle.

ac9uuw00007197

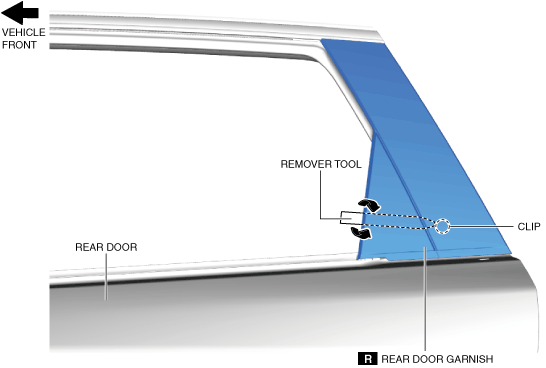

3.  Move the remover tool in the direction of the arrows shown in the figure and detach the clip of the rear door garnish from the rear door.

ac9uuw00007198

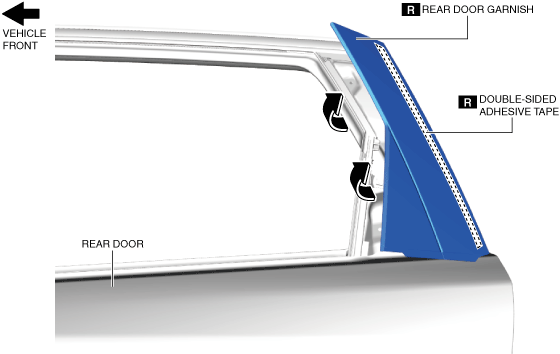

4.  Move the rear door garnish in the direction of the arrows shown in the figure and peel off the double-sided adhesive tape.

ac9uuw00007199

5.  Remove the rear door garnish.
