REAR DOOR GARNISH INSTALLATION

id091600443900

Front Side

1.  Remove any grease or dirt from the adhesion surface of the rear door.

2.  Peel off the backing of the double-sided adhesive tape.

3.  Open the front door.

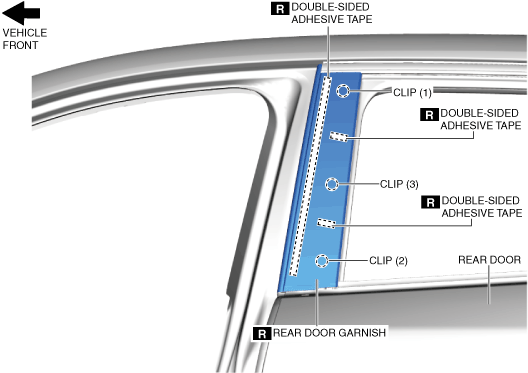

4.  Install the rear door garnish clips in the order shown in the figure.

ac9wzw00003957

5.  Press the rear door garnish to adhere the double-sided adhesive tape.

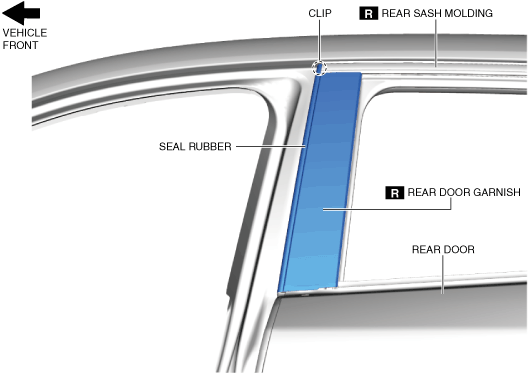

6.  Install the clip of the seal rubber to the rear sash molding.

ac9uuw00006854

7.  Peel off the protective film on the rear door garnish. (With protective film)

8.  Install the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

Rear Side

1.  Remove any grease or dirt from the adhesion surface of the rear door.

2.  Peel off the backing of the double-sided adhesive tape.

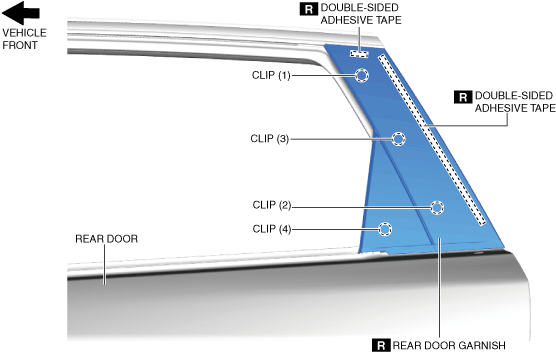

3.  Install the rear door garnish clips in the order shown in the figure.

ac9wzw00003958

4.  Press the rear door garnish to adhere the double-sided adhesive tape.

5.  Peel off the protective film on the rear door garnish. (With protective film)

6.  Install the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)
