RADIATOR GRILLE DISASSEMBLY/ASSEMBLY

id091600460100

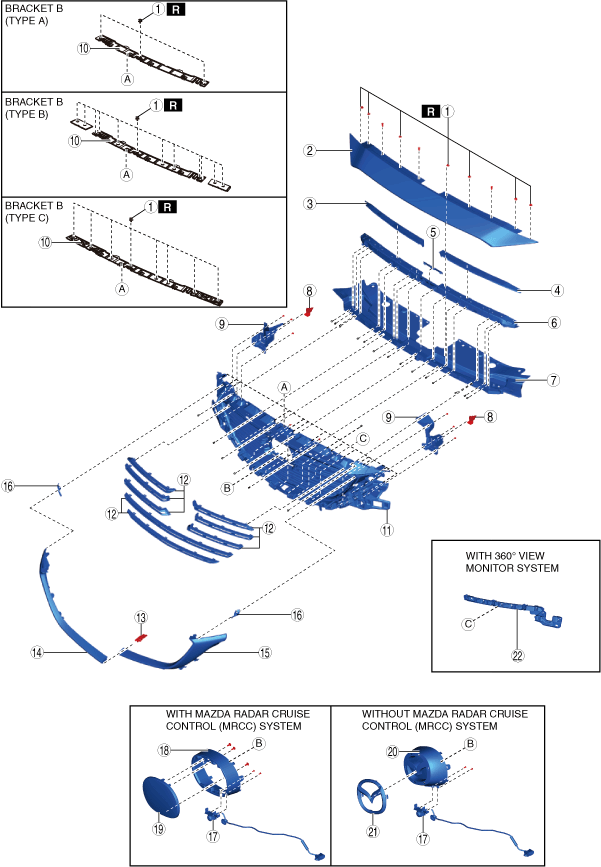

1. Disassemble in the order indicated in the table.

ac9wzw00003899

1	Rivet (See Rivet Removal Note.)
2	Front bumper upper face
3	Upper grille bracket (RH)
4	Upper grille bracket (LH)
5	Plate
6	Upper grille bracket
7	Grille bracket
8	Locator pin
9	Bracket A
10	Bracket B
11	Radiator grille reinforcement
12	Grille garnish (With grille garnish)
13	Clip (See Clip Removal Note.)
14	Lower grille molding (RH)
15	Lower grille molding (LH)
16	Protector
17	Front camera (With 360° view monitor system) (See FRONT CAMERA REMOVAL/INSTALLATION.)
18	Mascot base (With Mazda radar cruise control (MRCC) system)
19	Mascot (With Mazda radar cruise control (MRCC) system)
20	Mascot base (Without Mazda radar cruise control (MRCC) system)
21	Mascot (Without Mazda radar cruise control (MRCC) system)
22	Bracket C (With 360° view monitor system)

2. Assemble in the reverse order of disassembly.

Rivet Removal Note

1. When removing the rivet, perform the following procedure:

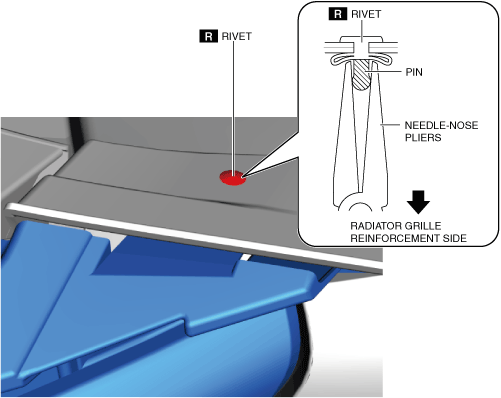

(1) Secure the rivet pin from the radiator grille reinforcement side using needle-nose pliers.

ac9uuw00006860

Caution

• If an inappropriate drill diameter is used, the front bumper upper face and the radiator grille reinforcement may be damaged.

(2) Use the following drill diameter.

Drill diameter:

4.1 mm {0.161 in} or less

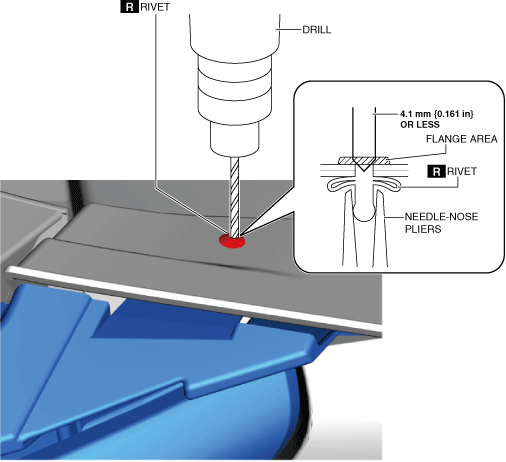

(3) Remove the rivet flange using a drill and remove the rivet.

ac9uuw00006861

(4) Remove any rivet shavings from the front bumper upper face and the radiator grille reinforcement.

Clip Removal Note

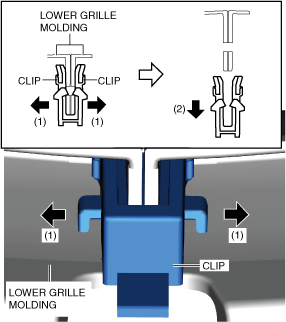

1. Open the clip in the direction of arrows (1), remove it in the direction of arrow (2).

ac9uuw00006862
