FRONT CAMERA REMOVAL/INSTALLATION

id152000009700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

(3)  Mascot base (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY.)

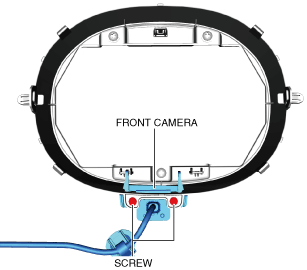

3.  Remove the screws.

ac9wzw00005278

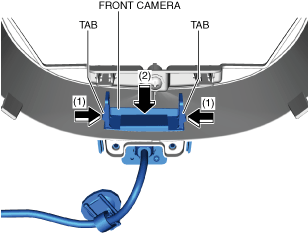

4.  While pressing the front camera tabs in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the front camera tabs from the mascot base.

ac9wzw00005279

5.  Remove the front camera.

6.  Install in the reverse order of removal.

7.  Perform the front camera aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)
