SIDE STEP MOLDING INSTALLATION

id091600804300

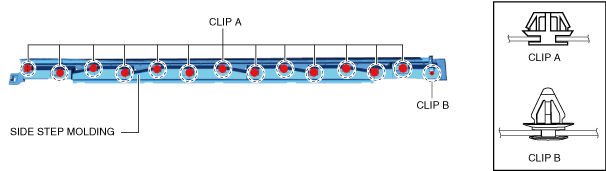

1.  Install the clips to the side step molding.

ac9wzw00004769

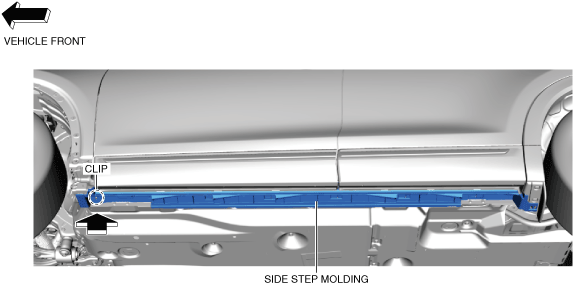

2.  Press the side step molding in the direction of the arrow shown in the figure and install the clip.

ac9uuw00006929

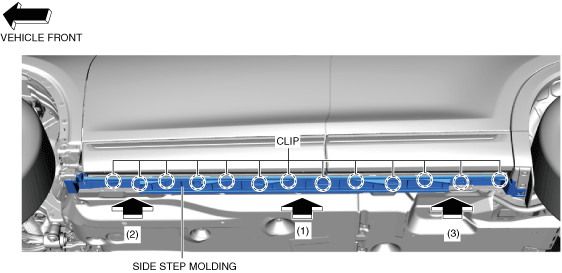

3.  Press the side step molding in the direction of the arrows shown in the figure and install the clips.

ac9uuw00006930

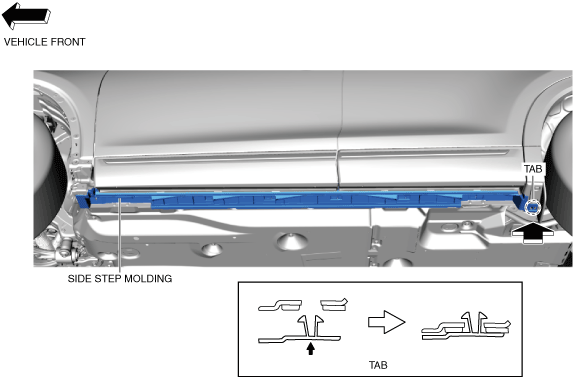

4.  Press the side step molding in the direction of the arrow shown in the figure and install the tab.

ac9uuw00006931

5.  Install the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)
