SIDE STEP MOLDING REMOVAL

id091600804400

1.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

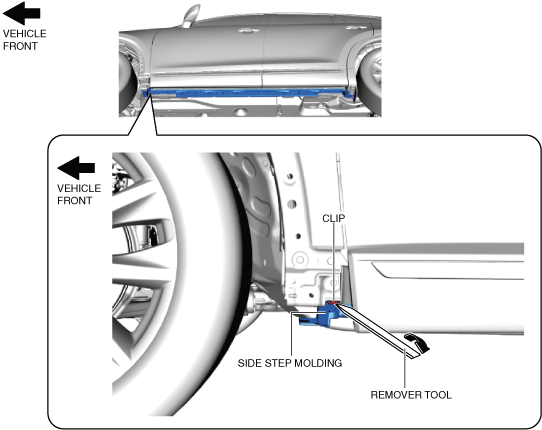

2.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the side step molding clip.

ac9uuw00006934

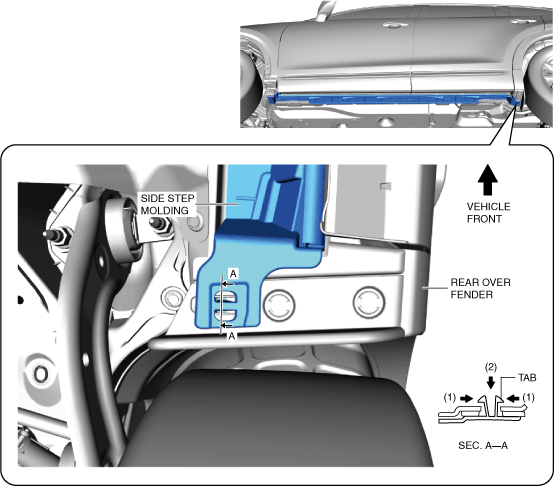

3.  While pressing the side step molding tabs in the direction of arrows (1) shown in the figure, move the side step molding in the direction of arrow (2) and detach the rear over fender from the side step molding.

ac9uuw00006935

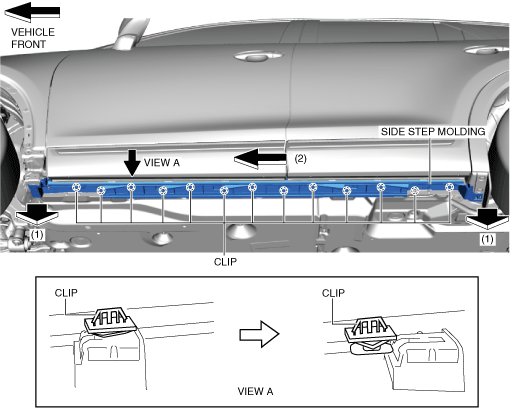

4.  Move the side step molding in the direction of arrow (2) shown in the figure while pulling both ends of the side step molding in the direction of arrows (1) to remove it.

ac9uuw00006936

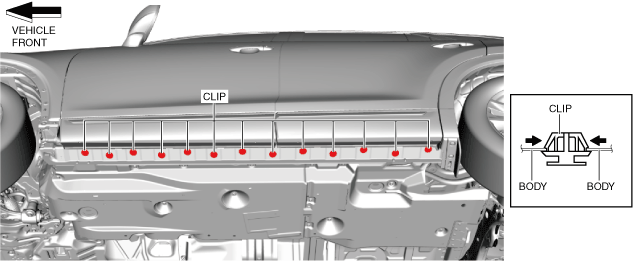

5.  Remove the clips.

ac9uuw00006937
