FRONT BELTLINE MOLDING REMOVAL/INSTALLATION

id091600804800

1.  Fully open the front door glass.

2.  Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION.)

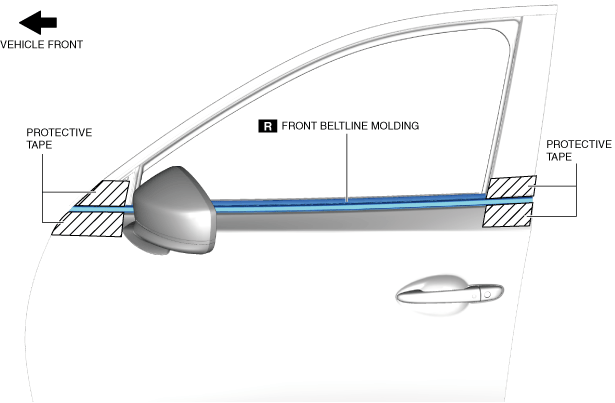

3.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

ac9wzw00004731

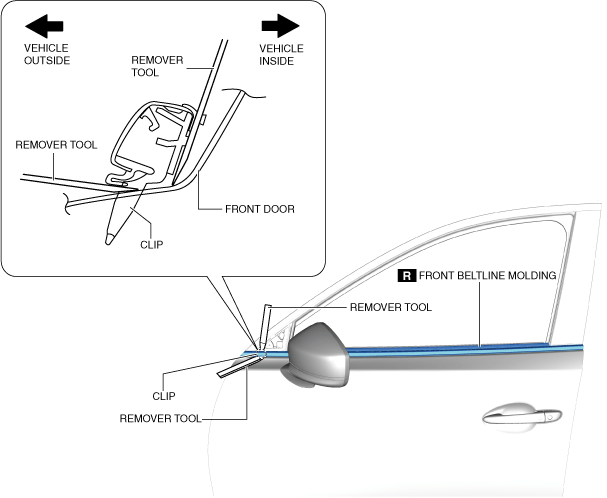

4.  Insert remover tools into the position shown in the figure, and detach the front beltline molding clip from the front door.

ac9uuw00006886

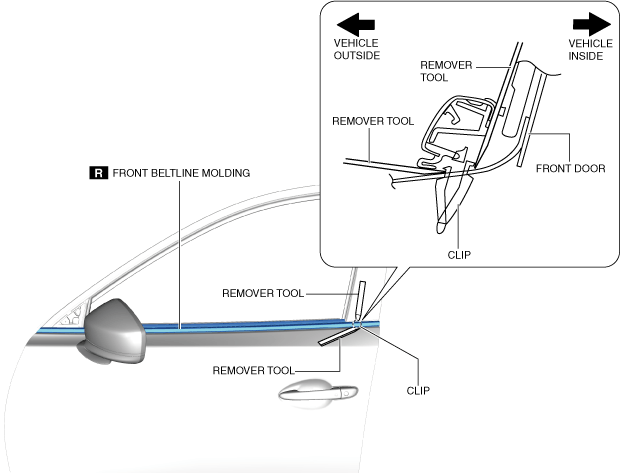

5.  Insert remover tools into the position shown in the figure, and detach the front beltline molding clip from the front door.

ac9uuw00006887

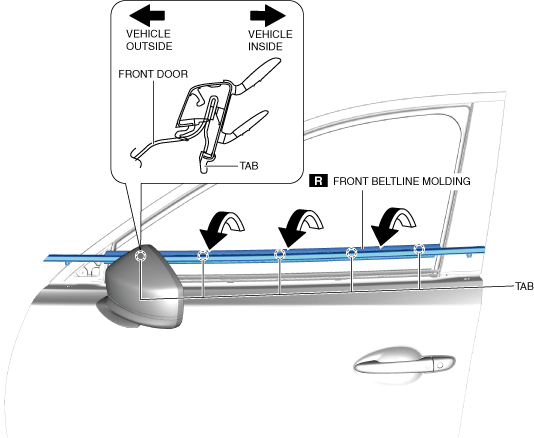

6.  Rotate the front beltline molding in the direction of the arrows shown in the figure and detach the front beltline molding tabs from the front door.

ac9wzw00004469

7.  Remove the front beltline molding.

8.  Install in the reverse order of removal.
