SIDE WALL REMOVAL/INSTALLATION

id091700602200

Driver-side

1.  Remove the driver-side console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

2.  Remove the screw.

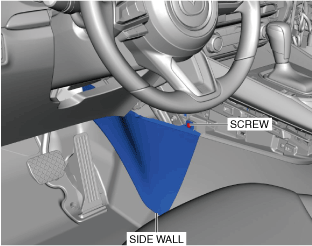

ac9uuw00005620

3.  Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching the hooks and clip.

Caution

•  If the hooks and clip are removed forcefully, the guide may be damaged. Carefully remove the hooks and clip so as not to damage the guide.

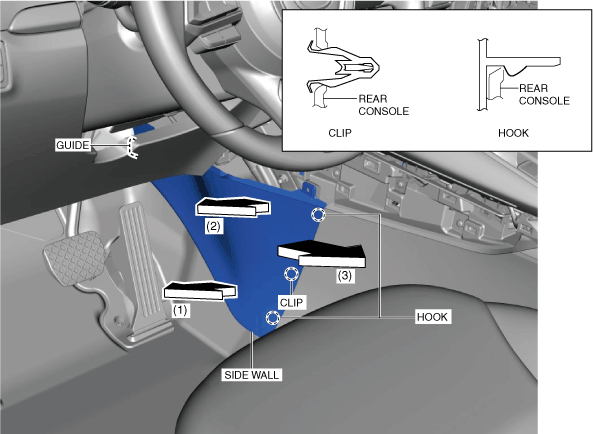

ac9uuw00005621

4.  Pull the side wall in the direction of arrow (3) and remove it while detaching the guide.

5.  Install in the reverse order of removal.

Passenger-side

1.  Remove the passenger-side console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

2.  Remove the screw.

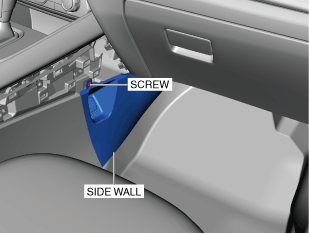

ac9uuw00005622

3.  Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching the clips.

Caution

•  If the hooks are removed forcefully, the guide may be damaged. Carefully remove the hooks so as not to damage the guide.

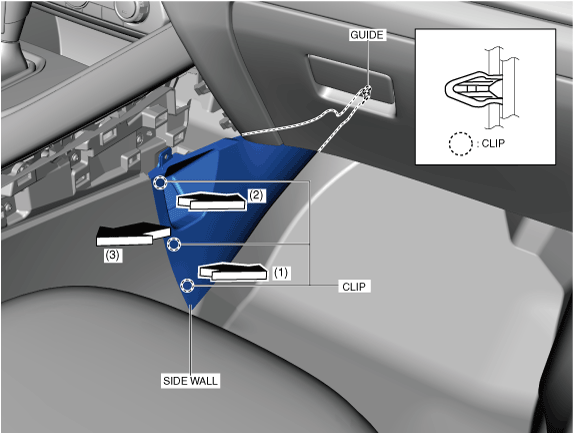

ac9uuw00005623

4.  Pull the side wall in the direction of arrow (3) and remove it while detaching the guide.

5.  Disconnect the accessory socket connector.

6.  Install in the reverse order of removal.
