SHIFT PANEL REMOVAL/INSTALLATION

id091700602400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

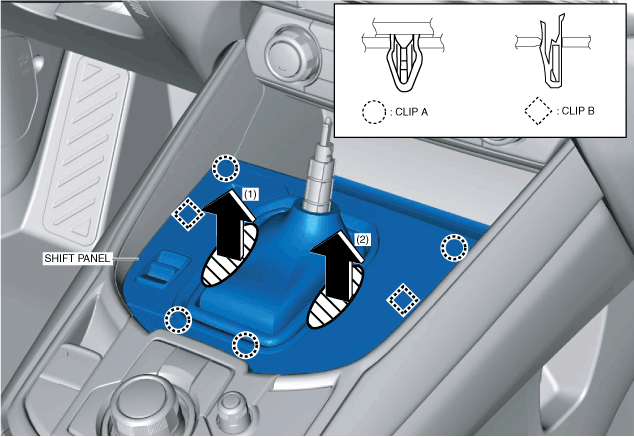

3.  Hold the shaded area shown in the figure, remove the shift panel in the direction of the arrows in the order of (1), (2) while detaching clips A and clips B.

ac9uuw00005378

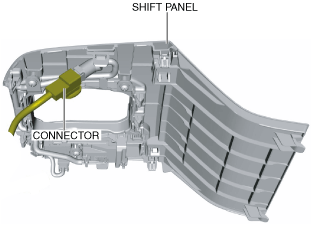

4.  Disconnect the connector.

ac9uuw00005379

5.  Remove the shift panel.

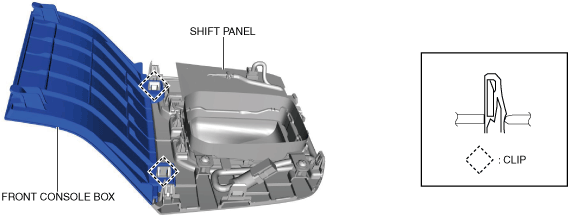

6.  Remove the front console box when replacing the shift panel while detaching the clips.

ac9uuw00005624

7.  Install in the reverse order of removal.
