FRONT TURN LIGHT BULB REMOVAL/INSTALLATION

id091800805000

Without Adaptive LED Headlights

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

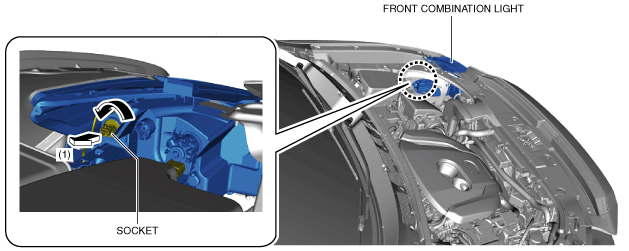

2.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

ac9uuw00007168

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

3.  Remove the front turn light bulb.

ac9uuw00007169

4.  Install in the reverse order of removal.

With Adaptive LED Headlights

Note

•  Because the front turn light is an LED type, it is integrated with the front combination light.

•  When replacing the front turn light, replace the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
