REAR FOG LIGHT REMOVAL/INSTALLATION

id091800805100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear bumper stay. (See REAR BUMPER STAY REMOVAL/INSTALLATION.)

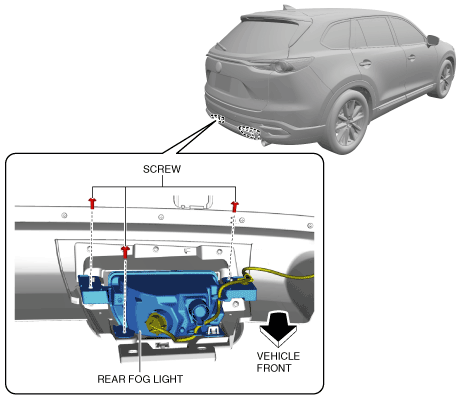

3.  Remove the screws.

ac9wzw00003974

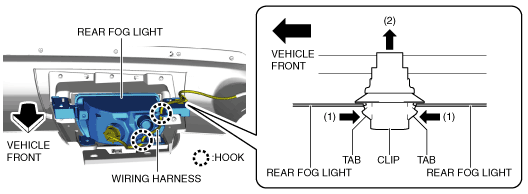

4.  While pressing the tabs of the clip in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to detach the tabs of the clip from the rear fog light.

ac9wzw00003975

5.  Remove the clip.

6.  Remove the wiring harness from the hooks.

7.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

ac9wzw00003976

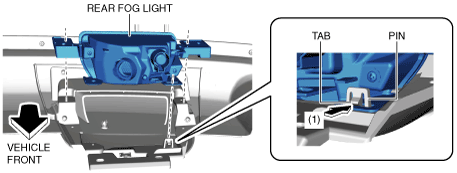

8.  While pressing the tab of the pin in the direction of arrow (1) shown in the figure, pull out the rear fog light from the rear bumper.

ac9wzw00003977

9.  Remove the rear fog light.

10.  Install in the reverse order of removal.
