REAR DOOR SPEAKER REMOVAL/INSTALLATION

id092000805000

Caution

•  If the procedure is performed while holding the rear door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

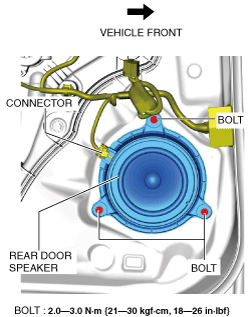

3.  Disconnect the connector.

ac9wzw00003644

4.  Remove the bolts.

5.  Pull the rear door speaker in the direction of the arrow shown in the figure and remove it.

ac9uuw00007748

6.  Install in the reverse order of removal. (See Rear Door Speaker Installation Note.)

Rear Door Speaker Installation Note

1.  Install the rear door speaker while aligning the pins to the positions shown in the figure.

ac9uuw00007749
