TWEETER REMOVAL/INSTALLATION

id092000808000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the side speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

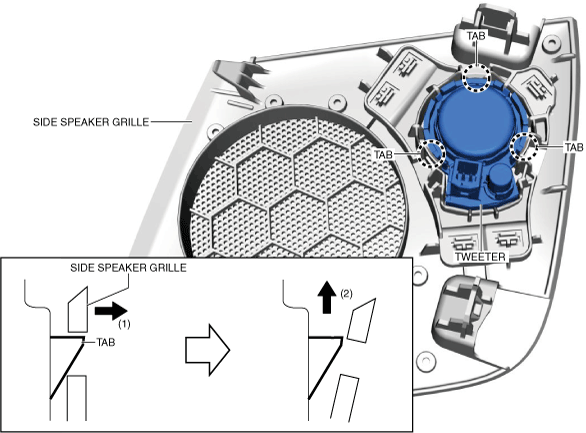

3.  While pressing the side speaker grille in the direction of arrow (1) shown in the figure, pull the tweeter in the direction of arrow (2) to detach the tweeter tabs from the side speaker grille.

ac9wzw00004892

4.  Remove the tweeter.

5.  Install in the reverse order of removal.
