ANTENNA AMPLIFIER REMOVAL/INSTALLATION

id092000813300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

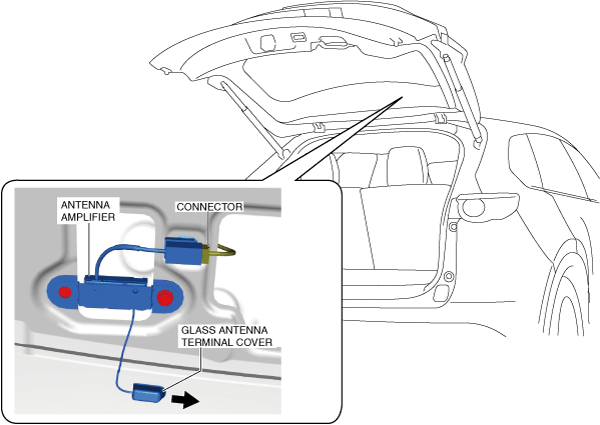

ac9wzw00005623

4.  Remove the glass antenna terminal cover in the direction of the arrow shown in the figure.

5.  Remove the fastener.

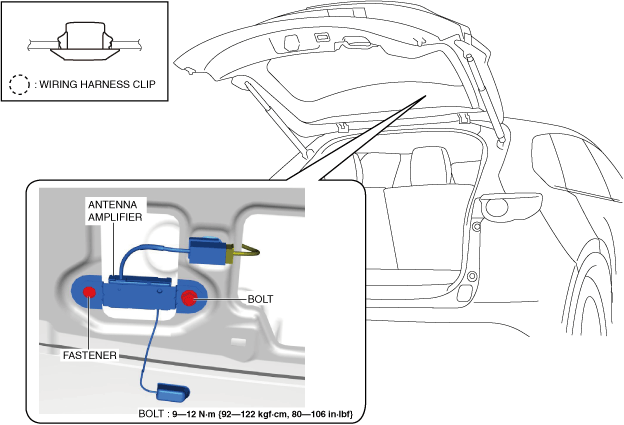

ac9wzw00005624

6.  Remove the bolt.

7.  Remove the wiring harness clip.

8.  Remove the antenna amplifier.

9.  Install in the reverse order of removal.
