FRONT SIDE SPEAKER REMOVAL/INSTALLATION

id092000900100

Note

•  If the procedure is performed while holding the front side speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the side speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

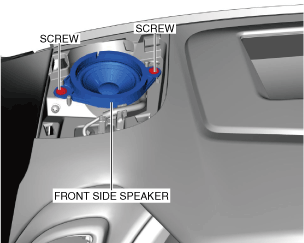

3.  Remove the screws.

ac9uuw00005682

4.  Remove the front side speaker.

5.  Disconnect the front side speaker connector.

6.  Install in the reverse order of removal.
