MAIN FUSE REMOVAL/INSTALLATION

id092100801500

Without i-ELOOP

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

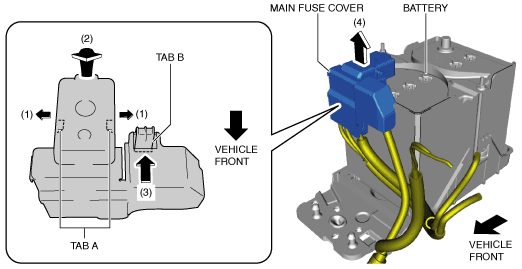

2.  Widen the main fuse cover in the direction of arrows (1) shown in the figure to detach tabs A of the main fuse cover from the main fuse, then lift up the main fuse cover in the direction of arrow (2).

ac9wzw00004359

3.  Press tab B of the main fuse cover in the direction of arrow (3) in the figure to detach tab B of the main fuse cover from the main fuse, then remove the main fuse cover in the direction of arrow (4).

4.  Remove the nuts.

ac9wzw00005680

5.  Remove the wiring harnesses.

6.  Remove the main fuse.

7.  Install in the reverse order of removal.

With i-ELOOP

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the terminal cover. (See BATTERY REMOVAL/INSTALLATION.)

3.  Remove the nuts.

ac9wzw00004360

4.  Remove the wiring harnesses.

5.  Remove the main fuse.

6.  Install in the reverse order of removal.
