FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION

id092200030400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

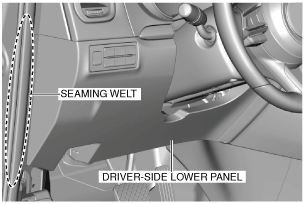

4.  Partially peel back the seaming welt.

ac9wzw00004005

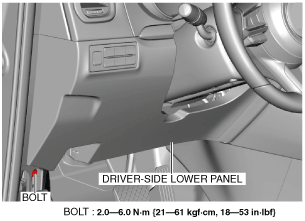

5.  Remove the bolt.

ac9wzw00004006

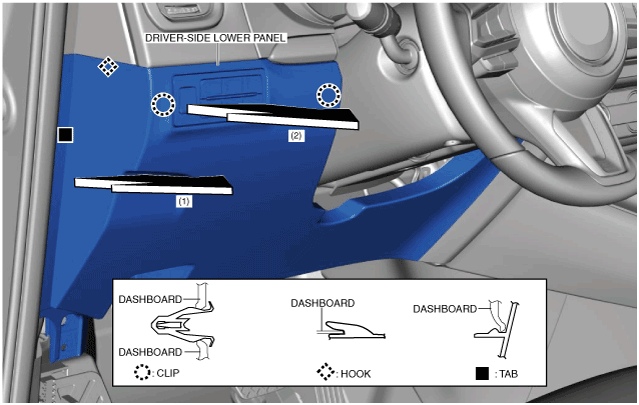

6.  Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching hook, clips and tab.

ac9wzw00004007

7.  Set the driver-side lower panel aside.

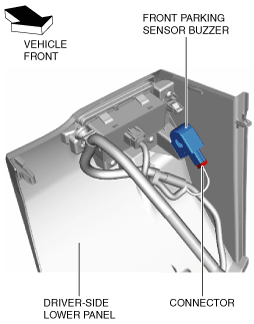

8.  Disconnect the connector.

ac9wzw00004008

9.  While pressing the front parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the front parking sensor buzzer in the direction of arrow (2) to detach the front parking sensor buzzer tabs from the driver-side lower panel.

ac9wzw00004009

10.  Remove the front parking sensor buzzer.

11.  Install in the reverse order of removal.
