REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION

id092200031900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

(4)  Rear ultrasonic sensor short-cord (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

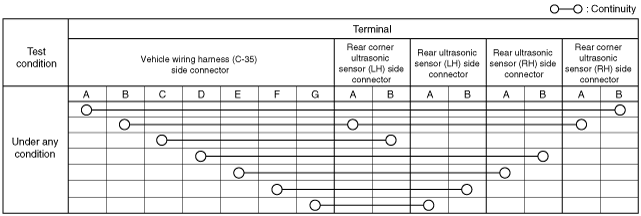

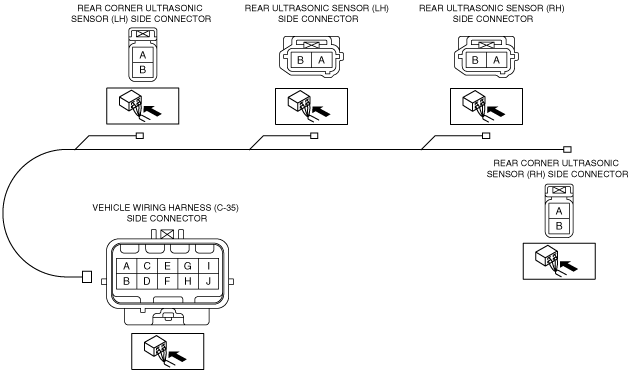

3.  Verify that the continuity between the rear ultrasonic sensor short-cord terminals is as indicated in the table.

ac9wzw00004029

ac9wzw00004030

•  If not as indicated in the table, replace the rear ultrasonic sensor short-cord. (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
