MAZDA ERA-GLONASS CONTROL MODULE FINALIZATION PROCEDURE

id092200666400

Caution
•  Always perform the Mazda ERA-GLONASS control module finalization procedure after approval of SIM activation application.
•  Perform the Mazda ERA-GLONASS control module finalization procedure in a location where GNSS (Global Navigation Satellite System) and mobile phone reception can be received.
Note
•  A new Mazda ERA-GLONASS control module is in factory mode.
•  The Mazda ERA-GLONASS does not operate when a new Mazda ERA-GLONASS control module is in factory mode. To make the Mazda ERA-GLONASS operable, it is necessary to perform the finalization procedure so that the Mazda ERA-GLONASS control module switches from factory mode to market mode.
•  There are two types of procedures for the Mazda ERA-GLONASS control module finalization, one is using M-MDS and the other is using vehicle switches.

Procedure Using M-MDS

1.  Connect the M-MDS to the DLC-2.

2.  Switch the ignition ON (engine off) and wait for 5 min or more.

3.  Perform the DTC inspection for the Mazda ERA-GLONASS control module and verify that no DTCs are displayed. (See DTC INSPECTION [MAZDA ERA-GLONASS CONTROL MODULE].)

4.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

1.  "Electrical"
2.  "DCM"
3.  "Finalization mode"

5.  Perform the finalization procedure according to the directions on the screen.

•  If "Operation Successful" is displayed
?  Finalization procedure completed
•  If "Operation Unsuccessful" is displayed
?  Perform an inspection according to the following table.

Step

Inspection

Action
1
VERIFY SIM ACTIVATION APPLICATION APPROVAL
•  Has the activation application been approved?
Yes
Go to the next step.
No
After approval of SIM activation application, perform the finalization procedure again.
2
VERIFY THAT CONTENTS WHEN APPLYING FOR SIM ACTIVATION AND Mazda ERA-GLONASS CONTROL MODULE INFORMATION MATCH
•  Do the contents when applying for activation and the Mazda ERA-GLONASS control module information match?
Yes
Go to the next step.
No
After approval of SIM activation application, perform the finalization procedure again.
3
VERIFY DTC
•  Perform the DTC inspection for the Mazda ERA-GLONASS control module.
•  Is the DTC displayed?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [MAZDA ERA-GLONASS CONTROL MODULE].)
No
•  VIN: RUM
?  Go to Step 4
•  VIN: Other than RUM
?  Go to Step 5
4
VERIFY THAT VIN IS STORED
•  Verify that the VIN is stored in the Mazda ERA-GLONASS control module using the M-MDS.
•  Is the VIN stored?
Yes
Go to the next step.
No
Enter the VIN in the Mazda ERA-GLONASS control module using the M-MDS and perform the finalization procedure again.
(See MAZDA ERA-GLONASS CONTROL MODULE CONFIGURATION.)
5
VERIFY GNSS_FIX
•  Display the GNSS_FIX using the M-MDS.
•  Is the GNSS_FIX 3D_Fix?
Yes
Wait for 5 min. or more and perform the finalization procedure again.
No
Move the vehicle to a location (outdoors) where the GNSS signal can be received and perform the finalization procedure again.
6
VERIFY TEL_SIGNAL
•  Display the TEL_SIGNAL using the M-MDS.
•  Is the TEL_SIGNAL value 0 x 03 or more?
Yes
Perform the finalization procedure again.
No
Move the vehicle to a location where mobile phone reception can be easily received and perform the finalization procedure again.

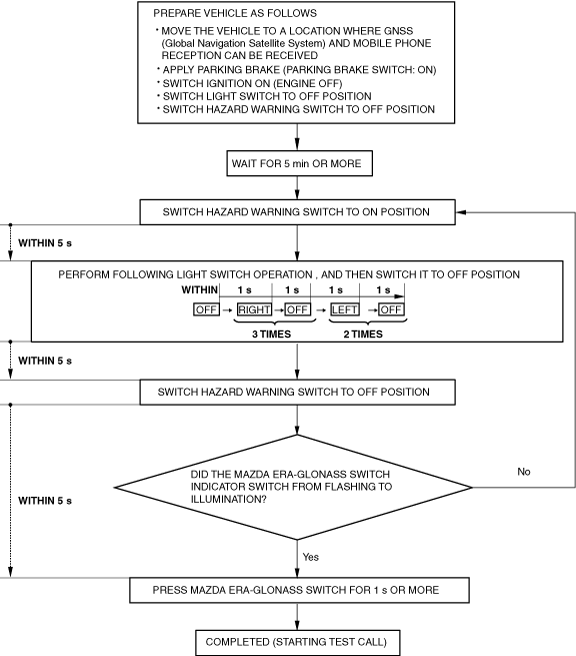

Procedure Using Vehicle Switches

Note
•  Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
am3zzw00020442
