DTC B1D03:87 [ADAPTIVE LED HEADLIGHTS CONTROL MODULE]

id1502c1001700

Caution
•  Vehicle specifications differ depending on the vehicle identification number (VIN).
Type A VIN:
?  JM0 TC2WLA*# 100001—299999
?  JM0 TC4WLA*# 100001—299999
?  JMZ TB5WYA*# 100001—599999
?  JMZ TB6WYA*# 100001—599999
?  JMZ TBEWYA*# 100001—599999
?  JMZ TBFWYA*# 100001—599999
?  JM7 TC2WLA*# 100001—299999
?  JM7 TC4WLA*# 100001—299999
?  JM5 TCAWY**# 100001—299999
?  JM6 TC2WLA*# 100001—299999
?  JM6 TC4WLA*# 100001—299999
Type B VIN:
?  JM0 TC2WLA*# 300001—399999
?  JM0 TC4WLA*# 300001—399999
?  JMZ TB5WYA*# 600001—
?  JMZ TB6WYA*# 600001—
?  JMZ TBEWYA*# 600001—699999
?  JMZ TBFWYA*# 600001—699999
?  JM7 TC2WLA*# 300001—399999
?  JM7 TC4WLA*# 300001—399999
?  JM5 TCAWY**# 300001—399999
?  JM6 TC2WLA*# 300001—399999
?  JM6 TC4WLA*# 300001—399999
Type C VIN:
?  JM0 TC2WLA*# 400001—
?  JM0 TC4WLA*# 400001—
?  JM5 TCAWY**# 400001—
?  JM6 TC2WLA*# 400001—
?  JM6 TC4WLA*# 400001—
?  JM7 TC2WLA*# 400001—
?  JM7 TC4WLA*# 400001—
?  JMZ TBEWYA*# 700001—
?  JMZ TBFWYA*# 700001—

Description

Communication error with front combination light (RH)
Detection condition
•  The adaptive LED headlights control module detected communication error with the front combination light (RH) for 5 s or more with the ignition switched ON (engine off or on).
Fail-safe
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
Possible cause
•  Front combination light (RH) connector or terminal malfunction
•  Adaptive LED headlights control module connector or terminal malfunction

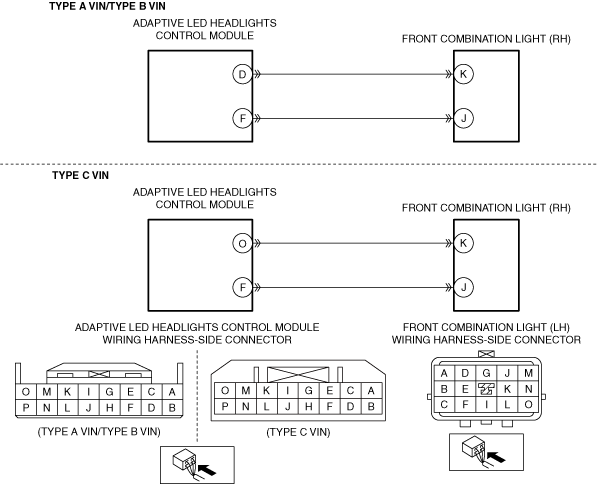

•  Short to ground in wiring harness between the following terminals:
?  Adaptive LED headlights control module terminal D—Front combination light (RH) terminal K (Type A VIN/Type B VIN)
?  Adaptive LED headlights control module terminal O—Front combination light (RH) terminal K (Type C VIN)
?  Adaptive LED headlights control module terminal F—Front combination light (RH) terminal J
•  Short to power supply in wiring harness between the following terminals:
?  Adaptive LED headlights control module terminal D—Front combination light (RH) terminal K (Type A VIN/Type B VIN)
?  Adaptive LED headlights control module terminal O—Front combination light (RH) terminal K (Type C VIN)
?  Adaptive LED headlights control module terminal F—Front combination light (RH) terminal J
•  Open circuit in wiring harness between the following terminals:
?  Adaptive LED headlights control module terminal D—Front combination light (RH) terminal K (Type A VIN/Type B VIN)
?  Adaptive LED headlights control module terminal O—Front combination light (RH) terminal K (Type C VIN)
?  Adaptive LED headlights control module terminal F—Front combination light (RH) terminal J
•  Front combination light (RH) malfunction
•  Adaptive LED headlights control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
INSPECT FRONT COMBINATION LIGHT (RH) CONNECTOR CONDITION
•  Switch the ignition off.
•  Disconnect the negative battery terminal.
•  Disconnect the front combination light (RH) connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 7.
2
INSPECT ADAPTIVE LED HEADLIGHTS CONTROL MODULE CONNECTOR CONDITION
•  Disconnect the adaptive LED headlights control module connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 7.
3
INSPECT FRONT COMBINATION LIGHT (RH) CIRCUIT FOR SHORT TO GROUND
•  Verify that the front combination light (RH) and adaptive LED headlights control module connectors are disconnected.
•  Inspect for continuity between the following terminals (wiring harness side) and body ground.
?  Front combination light (RH) terminal K
?  Front combination light (RH) terminal J
•  Is there continuity?
Yes
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
•  Adaptive LED headlights control module terminal D—Front combination light (RH) terminal K (Type A VIN/Type B VIN)
•  Adaptive LED headlights control module terminal O—Front combination light (RH) terminal K (Type C VIN)
•  Adaptive LED headlights control module terminal F—Front combination light (RH) terminal J
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has a short to ground.
Go to Step 7.
No
Go to the next step.
4
INSPECT FRONT COMBINATION LIGHT (RH) CIRCUIT FOR SHORT TO POWER SUPPLY
•  Verify that the front combination light (RH) and adaptive LED headlights control module connectors are disconnected.
•  Disconnect the front combination light (LH) connector.
Note
•  The inspection cannot be performed correctly if the voltage is measured without disconnecting the front combination light (LH) connector because power is supplied to the front combination light (RH) via the front combination light (LH).
•  Connect the negative battery terminal.
•  Switch the ignition ON (engine off or on).
•  Measure the voltage at the following terminals (wiring harness side).
?  Front combination light (RH) terminal K
?  Front combination light (RH) terminal J
•  Is the voltage 0 V?
Yes
Go to the next step.
No
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
•  Adaptive LED headlights control module terminal D—Front combination light (RH) terminal K (Type A VIN/Type B VIN)
•  Adaptive LED headlights control module terminal O—Front combination light (RH) terminal K (Type C VIN)
•  Adaptive LED headlights control module terminal F—Front combination light (RH) terminal J
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has a short to power supply.
Go to Step 7.
5
INSPECT FRONT COMBINATION LIGHT (RH) CIRCUIT FOR OPEN CIRCUIT
•  Switch the ignition off.
•  Disconnect the negative battery terminal.
•  Verify that the front combination light (RH) and adaptive LED headlights control module connectors are disconnected.
•  Inspect the wiring harness between the following terminals (wiring harness side) for continuity.
?  Adaptive LED headlights control module terminal D—Front combination light (RH) terminal K (Type A VIN/Type B VIN)
?  Adaptive LED headlights control module terminal O—Front combination light (RH) terminal K (Type C VIN)
?  Adaptive LED headlights control module terminal F—Front combination light (RH) terminal J
•  Is there continuity?
Yes
Go to the next step.
No
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
•  Adaptive LED headlights control module terminal D—Front combination light (RH) terminal K (Type A VIN/Type B VIN)
•  Adaptive LED headlights control module terminal O—Front combination light (RH) terminal K (Type C VIN)
•  Adaptive LED headlights control module terminal F—Front combination light (RH) terminal J
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has an open circuit.
Go to the next step.
6
VERIFY IF MALFUNCTIONING LOCATION IS FRONT COMBINATION LIGHT (RH) DEPENDING ON REPEATABILITY
•  Always reconnect all disconnected connectors.
•  Connect the negative battery terminal.
•  Clear the adaptive LED headlights control module DTCs using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 5 s or more.
•  Retrieve the adaptive LED headlights control module DTCs using the M-MDS.
•  Is the same DTC displayed?
Yes
Replace the front combination light (RH), then go to the next step.
(See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
No
Go to Step 8.
7
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Always reconnect all disconnected connectors.
•  Connect the negative battery terminal.
•  Clear the adaptive LED headlights control module DTCs using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 5 s or more.
•  Retrieve the adaptive LED headlights control module DTCs using the M-MDS.
•  Is the same DTC displayed?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the adaptive LED headlights control module, then go to the next step.
No
Go to the next step.
8
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning part according to the applicable DTC troubleshooting.
(See DTC TABLE [ADAPTIVE LED HEADLIGHTS CONTROL MODULE].)
No
DTC troubleshooting completed.
