FORWARD SENSING CAMERA (FSC) SHORT-CORD INSPECTION

id152000002200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(2)  Rearview mirror (See REARVIEW MIRROR REMOVAL/INSTALLATION.)

(3)  Forward sensing camera (FSC) short-cord (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.)

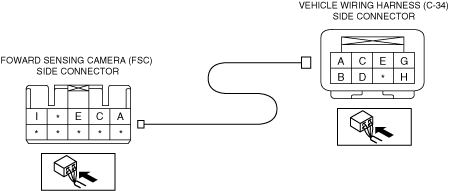

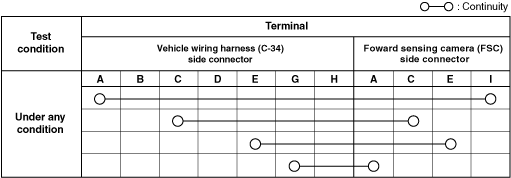

3.  Verify that the continuity between the forward sensing camera (FSC) short-cord terminals is as indicated in the table.

ac9uuw00009705

ac9uuw00009706

•  If not as indicated in the table, replace the forward sensing camera (FSC) short-cord.
