FORWARD SENSING CAMERA (FSC) AIMING

id152000002300

Special Service Tool (SST)

49 L067 003   Plum-bob

49 L067 006   Plum-bob

1.  Verify the vehicle identification number and perform the forward sensing camera (FSC) aiming.

Forward sensing camera (FSC) aiming type A

Note

•  The forward sensing camera (FSC) aiming procedure stores the camera shot angle in the FSC by reading a target used for aiming into the FSC.

•  Perform the FSC aiming if any of the following procedure is performed.

?  FSC replacement

?  FSC clip replacement

?  Windshield replacement

•  If an obstruction on the windshield or camera lens is blocking the scene in front of the vehicle, the target used for aiming cannot be read-in and aiming will not be performed correctly. Perform the following procedure before performing the aiming.

?  Verify that there is no water, dirt or sticker adhesion on the windshield, and that there is nothing on the camera lens such as dust or soiling.

Aiming procedure

1.  Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools.

2.  Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION.)

3.  Move the vehicle to level ground.

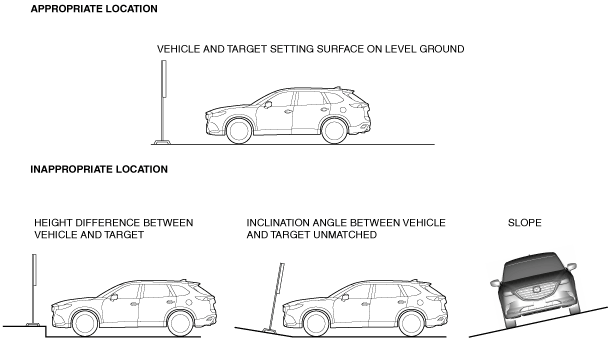

Caution

•  If the setting surface height and angle between the vehicle and the target differs, correct FSC aiming cannot be done. Perform the FSC aiming with the vehicle and target setting surface on level ground.

ac9uuw00007396

4.  Verify that there are no obstructions such as metal objects in the shaded areas shown in the figure.

Caution

•  If the FSC aiming is performed with obstructions such as white and black patterned objects or reflective metal in the shaded areas, the FSC will determine such obstructions as targets and the FSC aiming procedure will not be performed correctly. Move all obstructions away from the shaded areas, and when performing the aiming, do not have personnel standing in the shaded areas.

ac9uuw00007397

5.  Perform the DTC inspection for the FSC using the M-MDS and verify that no DTCs other than B115E:54 are displayed. (See DTC INSPECTION [FORWARD SENSING CAMERA (FSC)].)

Note

•  Because DTC B115E:54 is output if aiming is not performed, continue to perform the FSC aiming only if DTC B115E:54 is output. (See DTC TABLE [FORWARD SENSING CAMERA (FSC)].)

6.  Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.

ac9uuw00007398

Note

•  The center of the brand emblem indicates the center position of the vehicle.

7.  Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.

ac9uuw00007399

Note

•  The center of the brand emblem indicates the center position of the vehicle.

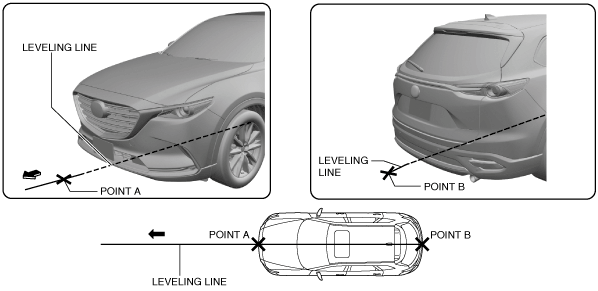

8.  Secure the end of the leveling line over point B.

Note

•  Use a commercially-available leveling line.

ac9uuw00007400

9.  Pull the unsecured end of the leveling line over the vehicle and to the front and adjust it so that it passes over point A.

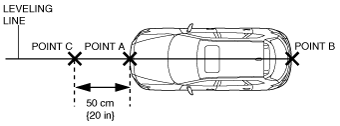

10.  Mark the line (position C) at the point 50 cm {20 in} from point A and in the direction forward of the vehicle.

ac9uuw00007918

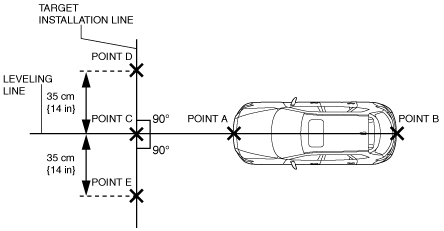

11.  Mark the points (points D and E) 35 cm {14 in} from point C on the line which runs perpendicular to the vehicle center line.

ac9uuw00007401

12.  Pull the connected points D, C and E lines (target setting line).

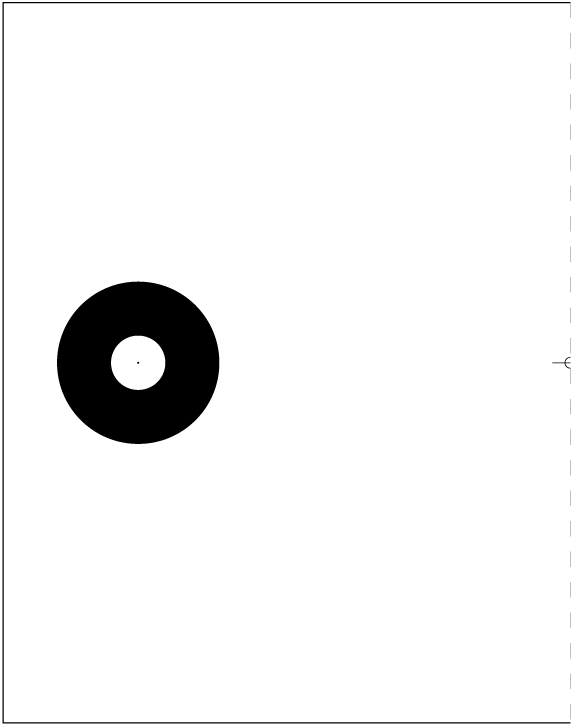

13.  Print out 2 sheets of the following target paper without using scaling.

Note

•  If the target sheets cannot be printed, follow the dimensions shown in Step 15 to make target sheets.

ac5wzw00003142

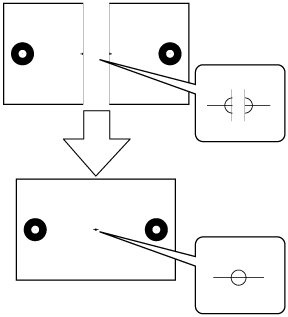

14.  Cut the printed target sheets along the dotted line and line up the two sheets at their respective center marks as shown in the figure, and then affix cellophane tape to the back of the target.

Caution

•  When taping the two target sheets together, if cellophane tape is affixed to the front of the target sheets it could reflect light and adversely affect the aiming accuracy. When taping the two target sheets together, affix the cellophane tape to the back of the target pattern.

ac5jjw00000715

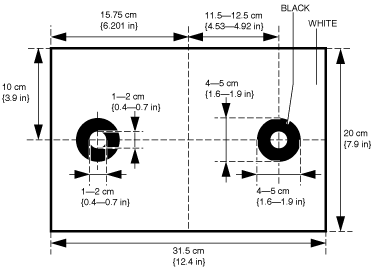

15.  Verify that the taped-together target is of the dimensions shown in the figure.

ac5wzw00003264

16.  Affix double-sided adhesive tape to the back of the target.

Caution

•  When affixing the target, if tape is affixed to the front of the target it could reflect light and adversely affect the aiming accuracy. When affixing the target, affix the double-sided adhesive tape to the back of the target, and then affix it to the board.

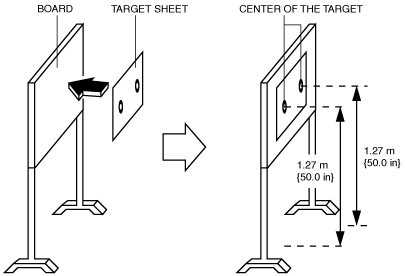

17.  Align the target to the height shown in the figure, and affix it to a board.

Note

•  Use a wooden board which does not reflect light to affix the target.

am2zzw00012293

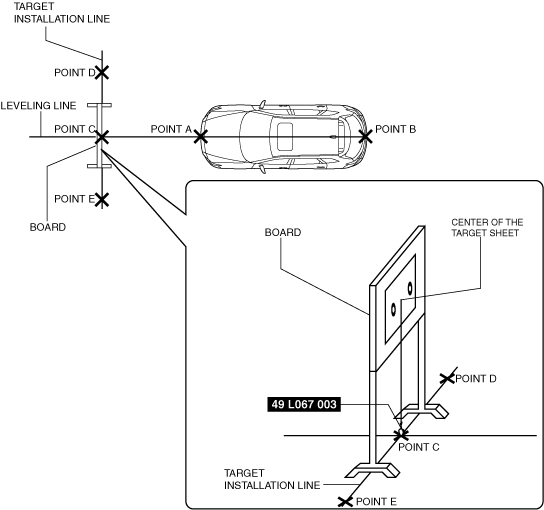

18.  Align the center of the target with point C using the SST (plum bob).

ac9uuw00007919

19.  Align so that the board and the target setting line are level with the center of point C.

20.  Connect the M-MDS (IDS) to the DLC-2.

21.  After vehicle identification, the following can be selected from the M-MDS initialization screen.

1.  "Electrical"

2.  "FSC Aiming"

22.  Input the following values according to the instructions on the M-MDS screen.

Item		Value
		mm	in
Input height from the ground to the wheel house.	Front Left	824
	Front Right	824
	Rear Left	837	33
	Rear Right	837	33
Input the distance from the target to the front wheel center.		-1529
Input the distance from the lens center to the vehicle center.	L.H.D.	26	1
	R.H.D.	16
Input the distance from the ground to the target center.		1270	50

23.  Perform the FSC aiming procedure according to the directions on the M-MDS.

24.  Verify the M-MDS display.

•  If "Procedure successful" is displayed

?  FSC aiming completed

•  If "Procedure unsuccessful" is displayed

?  Perform an inspection according to the following table for the error code procedure.

?  If an error code other than the error codes in the following table is displayed, verify the following and re-perform the FSC aiming if there is no malfunction, as there could be a communication error between the FSC and the diagnostic tester.

1.  Is the battery positive voltage for the vehicle 8 V or more?

2.  Is the ignition switched ON (engine off or on)?

Error code 01/05/31

Error code 02/03/04

Error code 06/08

Error code 22

•  Verify the aiming procedure and re-perform the aiming.

Error code FF

Wheel house height measurement procedure

1.  Adjust the SST (plum bob) so that it crosses the center of the wheel and identify the center position of the wheel house.

ac9uuw00007920

2.  Measure the height from the uppermost part of the wheel house to the floor.

Forward sensing camera (FSC) aiming type B

Note

•  Forward sensing camera (FSC) aiming procedure stores the camera shot angle in the FSC by mid-drive aiming (dynamic aiming), which is performed by driving the vehicle for a predetermined time under specific conditions or by stationary aiming (static aiming), which is performed by having the FSC to read a target used for aiming.

•  Perform the FSC aiming if any of the following procedure is performed.

?  FSC replacement

?  Windshield replacement

•  If an obstruction on the windshield or camera lens is blocking the scene in front of the vehicle, the target used for aiming cannot be read-in and aiming will not be performed correctly. Perform the following procedure before performing the aiming.

?  Verify that there is no water, mud, soiling or sticker adhesion on the windshield, and that there is nothing on the camera lens such as dust or soiling.

•  Driving the vehicle for a total of 5 to 10 min under the following conditions is necessary to complete mid-drive aiming (dynamic aiming). However, driving the vehicle while matching the conditions does not have to be continuous.

?  Drive the vehicle at a vehicle speed of 40 km/h {25 mph} or more

?  Drive the vehicle on a straight road (road with a turning radius of 300 m {984 ft 3 in} or more)

?  Drive the vehicle on a road with lane markers and structures (buildings and signs)

?  Drive the vehicle on a road with a level surface (not rough or inclined roads)

•  mid-drive aiming (dynamic aiming) may not complete in an environment where any of the following conditions continues.

?  Inclement weather caused by snow, rain, or fog

?  Windshield washer is being used or wipers are not used during rain

?  Exhaust gas from the vehicle ahead, sand or snow, or smoke and water-spray caused by steam from manholes rise up from the road

?  Vehicle is driven with significantly worn tires

?  Vehicle is driven downhill or on extremely rough or uneven roads

?  Area is dark such as at nighttime or evening, early morning, and in a tunnel or indoor parking

?  Headlight lens is dirty or its optical axis is deviated, or the headlights are not bright enough

?  Vehicle is subjected to strong light (driving towards the sun or high-beams) from the vehicle front

?  Vehicle is driven with tire chains or a spare tire equipped

?  Vehicle is driven downhill or on extremely rough or uneven roads

•  Perform stationary aiming (static aiming) when mid-drive aiming (dynamic aiming) is not performed.

Mid-drive aiming (Dynamic aiming)

1.  Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools.

2.  Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION.)

3.  Connect the M-MDS to the DLC-2.

4.  Perform the DTC inspection for the FSC using the M-MDS and verify that no DTCs other than B115E:54 are displayed. (See DTC INSPECTION [FORWARD SENSING CAMERA (FSC)].)

Note

•  Because DTC B115E:54 is output if aiming is not performed, continue to perform the FSC aiming if only DTC B115E:54 is output. (See DTC TABLE [FORWARD SENSING CAMERA (FSC)].)

5.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

1.  "Electrical"

2.  "FSC Aiming"

3.  "Dynamic Aiming"

Note

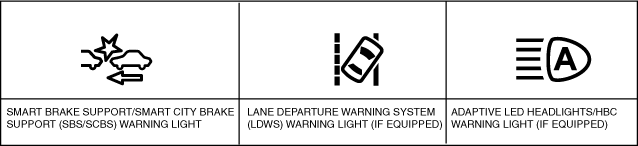

•  When in mid-drive aiming (dynamic aiming) mode, the SCBS warning light, LDWS warning light (if equipped), and HBC warning light (if equipped) flash.

ac3wzw00004050

•  M-MDS can be removed or left connected to the vehicle during the mid-drive aiming (dynamic aiming) road drive.

6.  Drive the vehicle on a road and verify that the warning lights in the instrument cluster turn off.

Stationary aiming (Static aiming)

1.  Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools.

2.  Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION.)

3.  Move the vehicle to level ground.

Caution

•  If the setting surface height and angle between the vehicle and the target differs, correct FSC aiming cannot be done. Perform the FSC aiming with the vehicle and target setting surface on level ground.

ac9uuw00007396

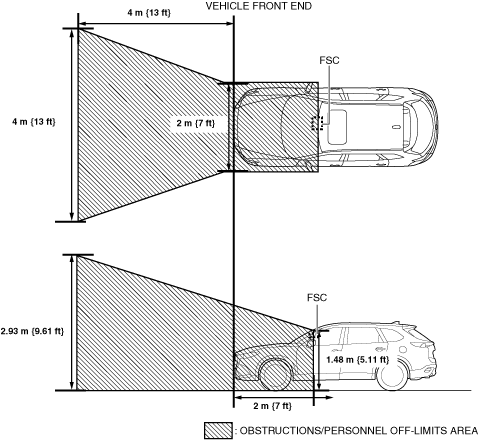

4.  Verify that there are no obstructions such as metal objects in the shaded areas shown in the figure.

Caution

•  If the FSC aiming is performed with obstructions such as white and black patterned objects or reflective metal in the shaded areas, the FSC will determine such obstructions as targets and the FSC aiming procedure will not be performed correctly. Move all obstructions away from the shaded areas, and when performing the aiming, do not have personnel standing in the shaded areas.

ac9wzw00005041

5.  Perform the DTC inspection for the FSC using the M-MDS and verify that no DTCs other than B115E:54 are displayed. (See DTC INSPECTION [FORWARD SENSING CAMERA (FSC)].)

Note

•  Because DTC B115E:54 is output if aiming is not performed, continue to perform the FSC aiming if only DTC B115E:54 is output. (See DTC TABLE [FORWARD SENSING CAMERA (FSC)].)

6.  Adjust the SST so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.

ac9uuw00007398

Note

•  The center of the brand emblem indicates the center position of the vehicle.

7.  Adjust the SST so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.

ac9uuw00007399

Note

•  The center of the brand emblem indicates the center position of the vehicle.

8.  Secure the end of the leveling line over point B.

Note

•  Use a commercially-available leveling line.

ac9uuw00007400

9.  Pull the unsecured end of the leveling line over the vehicle and to the front and adjust it so that it passes over point A.

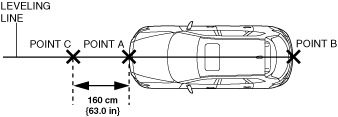

10.  Mark the line (position A) at the point 160 cm {63 in} from point A and in the direction forward of the vehicle.

ac9wzw00005042

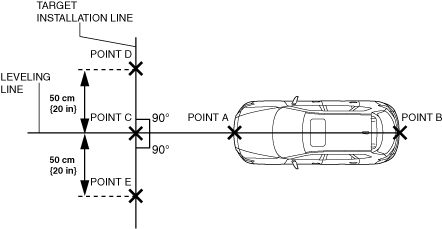

11.  Mark the points (points D and E) 50 cm {20 in} from point C on the line which runs perpendicular to the vehicle center line.

ac9wzw00005043

12.  Pull the connected points D, C and E lines (target setting line).

13.  Print out 6 sheets of each of the following target papers without using scaling.

Note

•  If the target sheets cannot be printed, follow the dimensions shown in Step 15 to make target sheets.

aaxjjw00023544

aaxjjw00023545

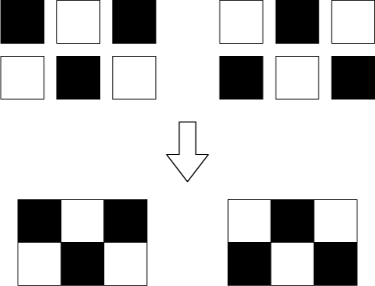

14.  Cut the printed target sheets along the dotted line and line up the two sheets at their respective center marks as shown in the figure, and then affix cellophane tape to the back of the target.

Caution

•  When taping the two target sheets together, if cellophane tape is affixed to the front of the target sheets it could reflect light and adversely affect the aiming accuracy. When taping the two target sheets together, affix the cellophane tape to the back of the target pattern.

ac9wzw00005046

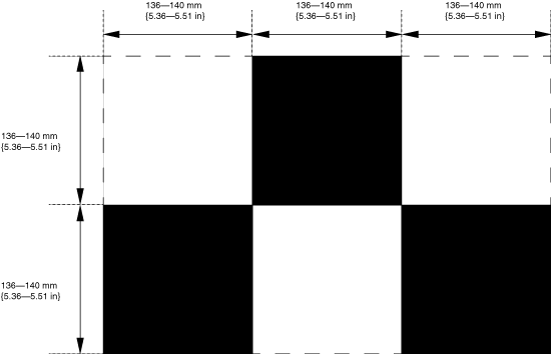

15.  Verify that the taped-together target is of the dimensions shown in the figure.

ac8wzw00003194

16.  Affix double-sided adhesive tape to the back of the target.

Caution

•  When affixing the target, if tape is affixed to the front of the target it could reflect light and adversely affect the aiming accuracy. When affixing the target, affix the double-sided adhesive tape to the back of the target, and then affix it to the board.

17.  Align the target to the height shown in the figure, and affix it to a board.

Note

•  Use a wooden board which does not reflect light to affix the target.

ac9wzw00005048

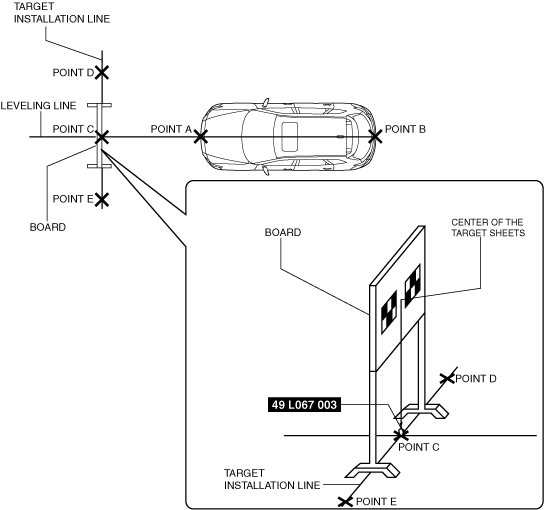

18.  Align the center of the target with point C using the SST (plum bob).

ac9wzw00005049

19.  Align so that the board and the target setting line are level with the center of point C.

20.  Connect the M-MDS to the DLC-2.

21.  After the vehicle is identified, select the following items from the initial screen of the M-MDS.

1.  "Electrical"

2.  "FSC Aiming"

3.  "Static Aiming"

22.  Input the following values according to the instructions on the M-MDS screen.

23.  Perform the FSC aiming procedure according to the directions on the M-MDS.

Caution

•  Switch the ignition OFF, and after 1 min or more has elapsed, switch the ignition ON. Otherwise, the master warning light in the instrument cluster may turn on and DTC U053B:82/83 may be output.

24.  Verify the M-MDS display.

•  If "Procedure successful" is displayed

?  FSC aiming completed

•  If "Procedure unsuccessful" is displayed

?  Perform an inspection according to the following table for the error code procedure.

?  If an error code other than the error codes in the following table is displayed, verify the following and re-perform the FSC aiming if there is no malfunction, as there could be a communication error between the FSC and the diagnostic tester.

1.  Is the battery positive voltage for the vehicle 8 V or more?

2.  Is the ignition switched ON (engine off or on)?

Error code 01/05

Error code 02/03/04

Error code 06/08

Error code FF
