SIDE CAMERA INSPECTION

id152000009300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Outer mirror glass (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

(2)  Outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

(3)  Lower outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

(4)  Side camera (See SIDE CAMERA REMOVAL/INSTALLATION.)

3.  Prepare four dry cell batteries (1.5 V)

4.  Connect the four dry cell batteries in a series.

ac5wzw00005108

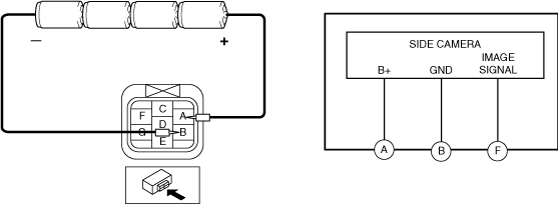

5.  Connect the positive pole of the dry cell battery to side camera terminal A, and the negative pole to terminal B.

ac8wzw00001269

6.  With the cell batteries being connected, measure the waveform between side camera terminal F and terminal B.

7.  Verify that waveform A shown in the figure is displayed two times or more.

ac5wzw00010254

•  If the voltage is not as shown in the figure, replace the side camera. (See SIDE CAMERA REMOVAL/INSTALLATION.)
