REAR OIL SEAL REPLACEMENT [SKYACTIV-G 2.5T]

id0110q8800900

Special Service Tool (SST)

49 S033 101   Dust cover installer

—

—

1.  Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] (2WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] (4WD).)

2.  Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

ac9wzw00003842

Rear Oil Seal Removal Note

1.  Cut the oil seal lip using a utility knife.

2.  Remove the oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the oil seal sliding part of the crankshaft.

ac9wzw00003843

Rear Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new rear oil seal.

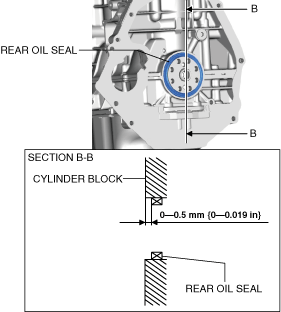

2.  Insert the rear oil seal into the cylinder block by hand.

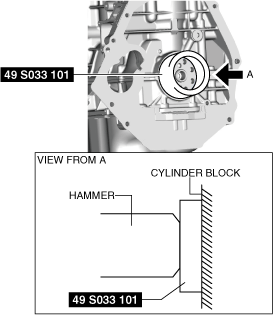

3.  Tap the oil seal in evenly using the SST and a hammer.

ac9wzw00003844

ac9wzw00003845
