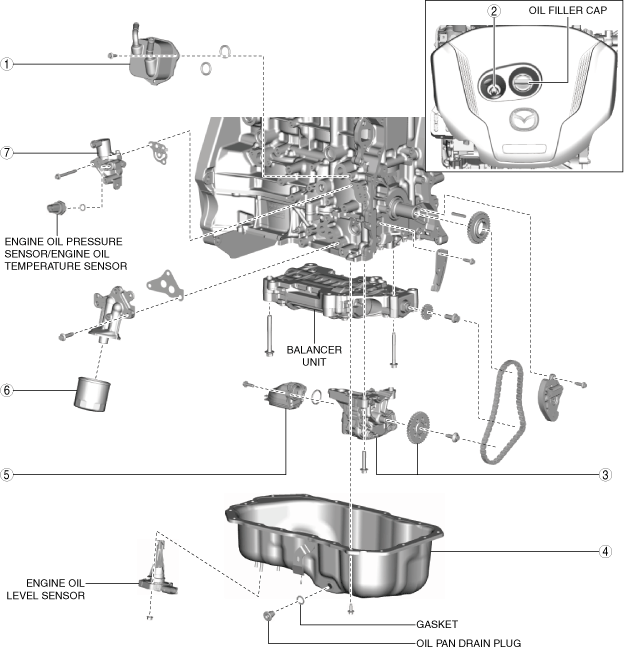

LUBRICATION SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]

id0111q8800100

ac9uuw00008415

1	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2	Dipstick (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G 2.5T].) (See ENGINE OIL REPLACEMENT [SKYACTIV-G 2.5T].)
3	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4	Oil pan (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6	Oil filter (See OIL FILTER REPLACEMENT [SKYACTIV-G 2.5T].)
7	Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See ENGINE OIL SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5T].)
