DTC U300E:13 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)] - MAZDA CX-9 TC 2016

DTC U300E:13 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)]

id0702k2731800

With i-stop

System malfunction location	• Front climate control unit power supply circuit open (IG1)
Detection condition	• Front climate control unit detects the difference between IG1 signal and CAN signal
Fail-safe function	Not applicable
Possible cause	• Front climate control unit connector malfunction • Open circuit in wiring harness between battery positive terminal and front climate control unit terminal • Front climate control unit malfunction • Instrument cluster malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT IGNITION RELAY (IG1_STAB) FOR MALFUNCTION • Remove the IGNITION relay (IG1_STAB). (See RELAY LOCATION.) • Inspect the IGNITION relay (IG1_STAB). (See RELAY INSPECTION.) • Is the IGNITION relay (IG1_STAB) normal?	Yes	Go to the next step.
1		No	Replace the IGNITION (IG1_STAB) relay. (See RELAY LOCATION.) Then go to Step 6.
2	VERIFY RELATED DTC • Switch the ignition off. • Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Is DTC U0423:68 also present?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC U0423:68 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
2		No	Go to the next step.
3	PERFORM INSTRUMENT CLUSTER DTC INSPECTION • Perform the instrument cluster DTC inspection using the M-MDS. (See DTC INSPECTION [INSTRUMENT CLUSTER].) • Are any DTCs displayed?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [INSTRUMENT CLUSTER].)
3		No	Go to the next step.
4	VERIFY FRONT CLIMATE CONTROL UNIT CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the front climate control unit connector. (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Are the connector and terminals normal?	Yes	Go to the next step.
4		No	Repair/replace the connector or terminal. After repair procedure, go to Step 6.

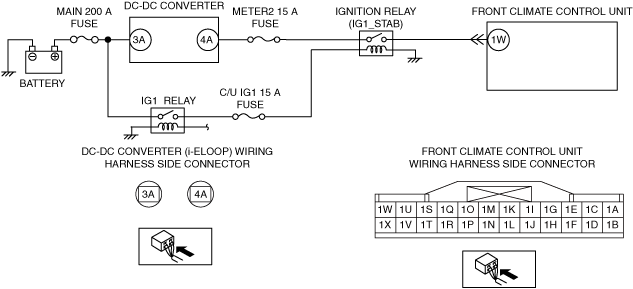

5	INSPECT IG1 CIRCUIT (BETWEEN FRONT CLIMATE CONTROL UNIT AND METER2 15 A FUSE) FOR OPEN CIRCUIT • Front climate control unit connector is disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition on (engine off or on). • Measure the voltage at the following terminal (wiring harness-side): ? Front climate control unit terminal 1W • Is the voltage B+?	Yes	Go to the next step.
5		No	Refer to the wiring diagram and verify whether or not there is a common connector between battery positive terminal and front climate control unit terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to the next step.
6	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN • Reconnect the disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the front climate control unit. (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) Go to the next step.
6		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT • Verify other DTCs displayed. • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
7		No	DTC troubleshooting completed.

Without i-stop

System malfunction location	• Front climate control unit power supply circuit open (IG1)
Detection condition	• Front climate control unit detects the difference between IG1 signal and CAN signal
Fail-safe function	Not applicable
Possible cause	• Front climate control unit connector malfunction • Open circuit in wiring harness between battery positive terminal and front climate control unit terminal • Front climate control unit malfunction • Instrument cluster malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY RELATED DTC • Switch the ignition off. • Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Is DTC U0423:68 also present?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC U0423:68 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
1		No	Go to the next step.
2	PERFORM INSTRUMENT CLUSTER DTC INSPECTION • Perform the instrument cluster DTC inspection using the M-MDS. (See DTC INSPECTION [INSTRUMENT CLUSTER].) • Are any DTCs displayed?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [INSTRUMENT CLUSTER].)
2		No	Go to the next step.
3	VERIFY FRONT CLIMATE CONTROL UNIT CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the front climate control unit connector. (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Are the connector and terminals normal?	Yes	Go to the next step.
3		No	Repair/replace the connector or terminal. After repair procedure, go to Step 5.

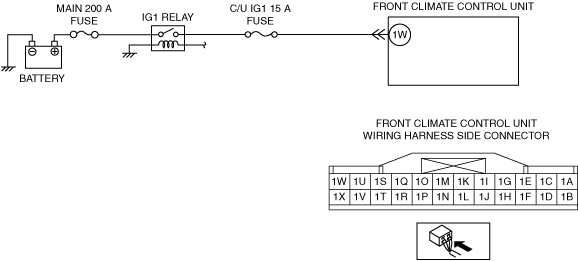

4	INSPECT IG1 CIRCUIT (BETWEEN FRONT CLIMATE CONTROL UNIT AND C/U IG1 15 A FUSE) FOR OPEN CIRCUIT • Front climate control unit connector is disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition on (engine off or on). • Measure the voltage at the following terminal (wiring harness-side): ? Front climate control unit terminal 1W • Is the voltage B+?	Yes	Go to the next step.
4		No	Refer to the wiring diagram and verify whether or not there is a common connector between C/U IG1 15 A fuse terminal and front climate control unit terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to the next step.
5	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN • Reconnect the disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the front climate control unit. (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) Go to the next step.
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT • Verify other DTCs displayed. • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
6		No	DTC troubleshooting completed.
