MAGNETIC CLUTCH INSPECTION

id071100006500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the front splash shield No.1. (RH) (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION.)

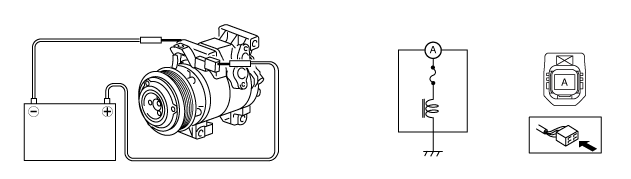

4.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

am3uuw00010202

5.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY.)
