SEAT BELT INSPECTION

id081100800300

Note
•  The specifications for each seat belt are as indicated in the table.

Except Australian specs.

Seat belt

Type

Function
Front seat belt (Driver-side, passenger-side)
Three-point
•  Front pre-tensioner seat belt
•  ELR
•  Load limiter
Second-row seat belt (LH/RH)
Three-point
•  ELR
Second-row seat belt (center)
Three-point
•  ELR
Third-row seat belt
Three-point
•  ELR

Australian specs.

Seat belt

Type

Function
Front seat belt (Driver-side, passenger-side)
Three-point
•  Front pre-tensioner seat belt
•  ELR
•  Load limiter
Second-row seat belt (LH/RH)
Three-point
•  Rear pre-tensioner seat belt
•  ALR
•  ELR
Second-row seat belt (center)
Three-point
•  ELR
Third-row seat belt
Three-point
•  ELR


Belt

1.  Verify that the seat belt is installed properly with no twists or kinks.

2.  Verify that there is no damage to the seat belt and no deformation of the metal fittings.

•  If there is any malfunction, replace the seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)(See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)(See SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION.)(See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)


ELR (Emergency Locking Retractor)


Except second-row center seat belt

1.  Verify that the seat belt can be pulled out smoothly, and that it retracts smoothly.

ac9uuw00009181
•  If there is any malfunction, replace the seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)(See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)(See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

2.  Verify that the seat belt retractor locks when the seat belt is pulled quickly.

•  If there is any malfunction, replace the seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)(See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)(See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

3.  Remove the seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)(See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)(See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

4.  While pulling the seat belt out, make sure that the seat belt does not lock when the seat belt retractor is tilted slowly up to -9°from the mounted position and locks when the seat belt retractor is tilted 45° or more.

ac9uuw00009182
•  If there is any malfunction, replace the seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)(See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)(See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)


Second-row center seat belt

Caution
•  The second-row center seat belt ELR only becomes operable after a certain amount of seat belt webbing is pulled out. For the ELR inspection, fasten the second-row center seat belt to the second-row buckle (center) and perform the inspection after pulling out the second-row center seat belt 130 mm {5.12 in} (ELR operable condition). If the inspection is performed while the ELR is not in an operable condition, the integrity of the system cannot be determined.

1.  Fasten the second-row center seat belt to the second-row buckle (center) and pull out the second-row center seat belt 130 mm {5.12 in}.

ac9wzw00005275

2.  Verify that the seat belt can be pulled out smoothly, and that it retracts smoothly.

•  If there is any malfunction, replace the second-row center seat belt. (See SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION.)

3.  Verify that the seat belt retractor locks when the seat belt is pulled quickly.

•  If there is any malfunction, replace the second-row center seat belt. (See SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION.)

4.  Remove the second-row center seat belt. (See SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION.)

5.  While pulling the seat belt out, make sure that the seat belt does not lock when the seat belt retractor is tilted slowly up to -9°from the mounted position and locks when the seat belt retractor is tilted 45° or more.

ac9uuw00009182
•  If there is any malfunction, replace the second-row center seat belt. (See SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION.)


Load Limiter Retractor

Warning
•  When the load limiter operates, the seat belt and anchor rub against each other strongly leaving wear tracks. If the seat belt is used in this state, the seat belt will not function at its full capability and there is the possibility of serious injury to passengers. Be sure to replace the seat belt once the load limiter operates.

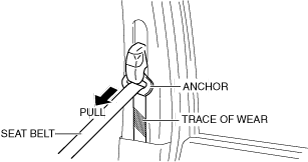

1.  If the vehicle has been subjected to a shock in an accident, pull the seat belt from the seat belt retractor and confirm that there are no wear tracks (the load limiter has not operated) by visually inspecting and feeling the seat belt.

ac9uuw00009184
•  If there is any malfunction, replace the seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)


ALR (Automatic Locking Retractor)

1.  Pull the seat belt out fully to change the lock mode from ELR to ALR.

2.  Verify that seat belt retractor makes a clicking sound as the seat belt slowly retracts. If no sound is heard, the lock mode has not changed to ALR. If necessary, repeat Step 1.

•  If there is any malfunction, replace the seat belt. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

3.  Verify that the seat belt retractor locks when pulled.

•  If there is any malfunction, replace the seat belt. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

4.  Verify that the lock mode changes to ELR when the seat belt is fully pulled out.

•  If there is any malfunction, replace the seat belt. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)
