SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION

id081100802400

Caution

•  If the retractor is disassembled, the second-row center seat belt will not pull out or retract correctly due to looseness and excessive play. Therefore, do not disassemble the retractor.

Note

•  The second-row center seat belt is building into the second-row seat back (driver’s side).

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Second-row seat (driver’s side) (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

(2)  Second-row seat cushion (driver’s side) (See SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

4.  Remove the bolt.

ac9uuw00009197

5.  Remove the following parts:

(1)  Second-row seat side cover (driver’s side) (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION.)

(2)  Second-row center buckle (See SECOND-ROW BUCKLE REMOVAL/INSTALLATION.)

(3)  Second-row seat back component (driver’s side) (See SECOND-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(4)  Second-row seat back trim (driver’s side) (See SECOND-ROW SEAT BACK TRIM REMOVAL/INSTALLATION.)

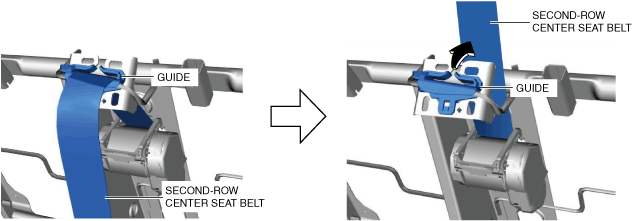

6.  Remove the second-row center seat belt from the guide.

ac9uuw00009198

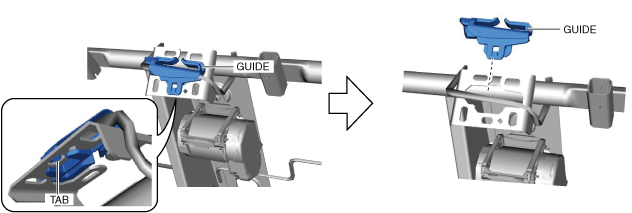

7.  Detach the tab and remove the guide.

ac9uuw00009199

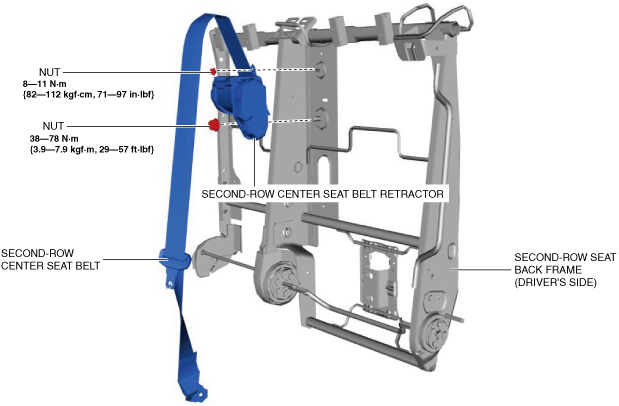

8.  Remove the nuts.

ac9uuw00009200

9.  Remove the second-row center seat belt retractor from the second-row seat back frame (driver’s side).

10.  Remove the second-row center seat belt.

11.  Install in the reverse order of removal.
