1
|
VERIFY THAT INCORRECT DISPLAY IS NOT INSTALLED
• Verify that the display installed on the vehicle is a Mazda genuine center display.
• Is the installed display a Mazda genuine center display?
|
Yes
|
Go to the next step.
|
|
No
|
Explain to the customer that a display other than a Mazda genuine is installed.
• Replace with a Mazda genuine center display, then go to Step 8.
|
|
2
|
INSPECT CENTER DISPLAY CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery terminal.
• Disconnect the center display connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 8.
|
|
3
|
INSPECT CONNECTIVITY MASTER UNIT (CMU) CONNECTOR CONDITION
• Disconnect the connectivity master unit (CMU) connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 8.
|
|
4
|
INSPECT CENTER DISPLAY CIRCUIT FOR SHORT TO GROUND
• Verify that the center display and connectivity master unit (CMU) connectors are disconnected.
• Inspect for continuity between the following terminals (wiring harness-side) and body ground:
-
? Center display terminal 2B
? Center display terminal 2D
• Is there continuity?
|
Yes
|

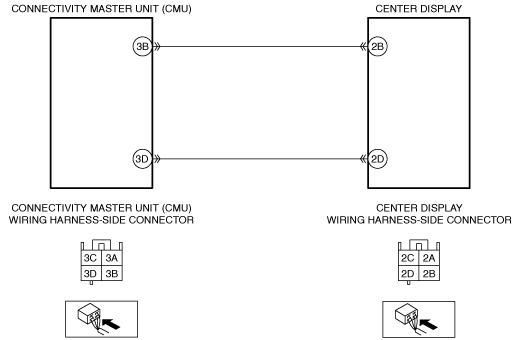

Refer to the wiring diagram and verify if there is a common connector between the following terminals:
• Connectivity master unit (CMU) terminal 3B—Center display terminal 2B
• Connectivity master unit (CMU) terminal 3D—Center display terminal 2D
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning location.
If there is no common connector:
• Repair or replace the wiring harness which has a short to ground.
Go to Step 8.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT CENTER DISPLAY CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the center display and connectivity master unit (CMU) connectors are disconnected.
• Connect the negative battery terminal.
• Switch the ignition ON (engine off or on).
• Measure the voltage at the following terminals (wiring harness-side):
-
? Center display terminal 2B
? Center display terminal 2D
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
|
No
|
Refer to the wiring diagram and verify if there is a common connector between the following terminals:
• Connectivity master unit (CMU) terminal 3B—Center display terminal 2B
• Connectivity master unit (CMU) terminal 3D—Center display terminal 2D
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
• Repair or replace the malfunctioning location.
If there is no common connector:
• Repair or replace the wiring harness which has a short to power supply.
Go to Step 8.
|
|
6
|
INSPECT CENTER DISPLAY CIRCUIT FOR OPEN CIRCUIT
• Switch the ignition off.
• Disconnect the negative battery terminal.
• Verify that the center display and connectivity master unit (CMU) connectors are disconnected.
• Inspect the wiring harness for continuity between the following terminals (wiring harness-side):
-
? Connectivity master unit (CMU) terminal 3B—Center display terminal 2B
? Connectivity master unit (CMU) terminal 3D—Center display terminal 2D
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Refer to the wiring diagram and verify if there is a common connector between the following terminals:
• Connectivity master unit (CMU) terminal 3B—Center display terminal 2B
• Connectivity master unit (CMU) terminal 3D—Center display terminal 2D
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
• Repair or replace the malfunctioning location.
If there is no common connector:
• Repair or replace the wiring harness which has an open circuit.
Go to Step 8.
|
|
7
|
VERIFY IF MALFUNCTIONING LOCATION IS CENTER DISPLAY DEPENDING ON REPEATABILITY
• Always reconnect all disconnected connectors.
• Connect the negative battery terminal.
• Clear the DTC for the connectivity master unit (CMU) using the M-MDS.
• Switch the ignition ON (engine off or on) and wait for 7 s or more.
• Retrieve the connectivity master unit (CMU) DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Replace the center display, then go to the next step.
|
|
No
|
Go to Step 9.
|
|
8
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Always reconnect all disconnected connectors.
• Connect the negative battery terminal.
• Clear the DTC for the connectivity master unit (CMU) using the M-MDS.
• Switch the ignition ON (engine off or on) and wait for 7 s or more.
• Retrieve the connectivity master unit (CMU) DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the connectivity master unit (CMU).
Go to the next step.
|
|
No
|
Go to the next step.
|
|
9
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
