DOOR LOCK DOES NOT OPERATE [SECURITY AND LOCKS]

Step	Inspection	Action
1	PERFORM ODDTC SELF TEST AND DTC INSPECTION • Perform the ODDTC Self Test. (See DTC INSPECTION [START STOP UNIT].) • Is the DTC displayed?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [START STOP UNIT].)
No	Go to the next step.
2	INSPECT DOOR LATCH SWITCH STUCK OFF OR OPEN CIRCUIT • Open each door and verify that the door ajar warning indication in the instrument cluster indicates. • Does the door ajar warning indication indicate?	Yes	Go to the next step.
No	• Inspect the door latch switch on the door in which the ajar warning indication did not indicate and for an open circuit in the wiring harness between the rear body control module (RBCM) and ground. (See FRONT DOOR LATCH SWITCH INSPECTION.) (See REAR DOOR LATCH SWITCH INSPECTION.) • After inspection, go to Step 8.
3	DETERMINE IF MALFUNCTION CAUSE IS DOOR LOCK ACTUATOR • Perform the lock/unlock operation using door lock switch for each door. • Is door locked/unlocked?	Yes	Go to the next step.
No	• Inspect the door lock actuator for the door which could not lock/unlock. (See FRONT DOOR LOCK ACTUATOR INSPECTION.) (See REAR DOOR LOCK ACTUATOR INSPECTION.) • After inspection, go to Step 8.
4	DETERMINE IF MALFUNCTION CAUSE IS DOOR KEY CYLINDER • Insert the auxiliary key into the door key cylinder and perform the lock/unlock operation using the auxiliary key. • Is door locked/unlocked?	Yes	Go to the next step.
No	• Inspect the front door key cylinder switch. (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.) • After inspection, go to Step 8.
5	INSPECT IF MALFUNCTION CAUSE IS OPEN CIRCUIT IN WIRING HARNESS BETWEEN FRONT DOOR KEY CYLINDER SWITCH AND REAR BODY CONTROL MODULE (RBCM) • Disconnect the negative battery terminal. • Disconnect the front door latch and lock actuator (driver-side) connector. • Disconnect the rear body control module (RBCM) connector. • Inspect for continuity between the following terminals (vehicle wiring harness). ? Front door latch and lock actuator (driver-side) terminal H (L.H.D.)/F (R.H.D.) and rear body control module (RBCM) terminal 3H • Is there continuity?	Yes	Go to the next step.
No	• Repair or replace the wiring harness for an open circuit. • After repair procedure, go to Step 8.
6	INSPECT IF MALFUNCTION CAUSE IS OPEN CIRCUIT IN WIRING HARNESS BETWEEN DOOR LOCK SWITCH AND REAR BODY CONTROL MODULE (RBCM) • Disconnect the door lock switch connector. • Inspect for continuity between the following terminals (vehicle wiring harness). ? Power window main switch terminal 2J and rear body control module (RBCM) terminal 3F • Is there continuity?	Yes	Go to the next step.
No	• Repair or replace the wiring harness for an open circuit. • After repair procedure, go to Step 8.
7	DETERMINE IF MALFUNCTION CAUSE IS DOOR LOCK SWITCH • Perform the lock/unlock operation using the door lock switch. • Does the lock knob switch between lock and unlock?	Yes	Go to the next step.
No	• Inspect the door lock switch. (See DOOR LOCK SWITCH INSPECTION.) • After inspection, go to the next step.
8	VERIFY IF MALFUNCTION CAUSE WAS CORRECTED • Has the malfunction symptom been eliminated?	Yes	Troubleshooting completed. (Explain the contents of the servicing to the customer.)
No	Verify the malfunction symptom in the symptom troubleshooting chart and perform the applicable other malfunction diagnosis. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SECURITY AND LOCKS].)

Step

Inspection

Action

PERFORM ODDTC SELF TEST AND DTC INSPECTION

• Perform the ODDTC Self Test.

(See DTC INSPECTION [START STOP UNIT].)

• Is the DTC displayed?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [START STOP UNIT].)

Go to the next step.

INSPECT DOOR LATCH SWITCH STUCK OFF OR OPEN CIRCUIT

• Open each door and verify that the door ajar warning indication in the instrument cluster indicates.

• Does the door ajar warning indication indicate?

Yes

Go to the next step.

• Inspect the door latch switch on the door in which the ajar warning indication did not indicate and for an open circuit in the wiring harness between the rear body control module (RBCM) and ground.

(See FRONT DOOR LATCH SWITCH INSPECTION.)

(See REAR DOOR LATCH SWITCH INSPECTION.)

• After inspection, go to Step 8.

DETERMINE IF MALFUNCTION CAUSE IS DOOR LOCK ACTUATOR

• Perform the lock/unlock operation using door lock switch for each door.

• Is door locked/unlocked?

Yes

Go to the next step.

• Inspect the door lock actuator for the door which could not lock/unlock.

(See FRONT DOOR LOCK ACTUATOR INSPECTION.)

(See REAR DOOR LOCK ACTUATOR INSPECTION.)

• After inspection, go to Step 8.

DETERMINE IF MALFUNCTION CAUSE IS DOOR KEY CYLINDER

• Insert the auxiliary key into the door key cylinder and perform the lock/unlock operation using the auxiliary key.

• Is door locked/unlocked?

Yes

Go to the next step.

• Inspect the front door key cylinder switch.

(See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)

• After inspection, go to Step 8.

INSPECT IF MALFUNCTION CAUSE IS OPEN CIRCUIT IN WIRING HARNESS BETWEEN FRONT DOOR KEY CYLINDER SWITCH AND REAR BODY CONTROL MODULE (RBCM)

• Disconnect the negative battery terminal.

• Disconnect the front door latch and lock actuator (driver-side) connector.

• Disconnect the rear body control module (RBCM) connector.

• Inspect for continuity between the following terminals (vehicle wiring harness).

? Front door latch and lock actuator (driver-side) terminal H (L.H.D.)/F (R.H.D.) and rear body control module (RBCM) terminal 3H

• Is there continuity?

Yes

Go to the next step.

• Repair or replace the wiring harness for an open circuit.

• After repair procedure, go to Step 8.

INSPECT IF MALFUNCTION CAUSE IS OPEN CIRCUIT IN WIRING HARNESS BETWEEN DOOR LOCK SWITCH AND REAR BODY CONTROL MODULE (RBCM)

• Disconnect the door lock switch connector.

• Inspect for continuity between the following terminals (vehicle wiring harness).

? Power window main switch terminal 2J and rear body control module (RBCM) terminal 3F

• Is there continuity?

Yes

Go to the next step.

• Repair or replace the wiring harness for an open circuit.

• After repair procedure, go to Step 8.

DETERMINE IF MALFUNCTION CAUSE IS DOOR LOCK SWITCH

• Perform the lock/unlock operation using the door lock switch.

• Does the lock knob switch between lock and unlock?

Yes

Go to the next step.

• Inspect the door lock switch.

(See DOOR LOCK SWITCH INSPECTION.)

• After inspection, go to the next step.

VERIFY IF MALFUNCTION CAUSE WAS CORRECTED

• Has the malfunction symptom been eliminated?

Yes

Troubleshooting completed. (Explain the contents of the servicing to the customer.)

Verify the malfunction symptom in the symptom troubleshooting chart and perform the applicable other malfunction diagnosis.

(See SYMPTOM TROUBLESHOOTING ITEM TABLE [SECURITY AND LOCKS].)

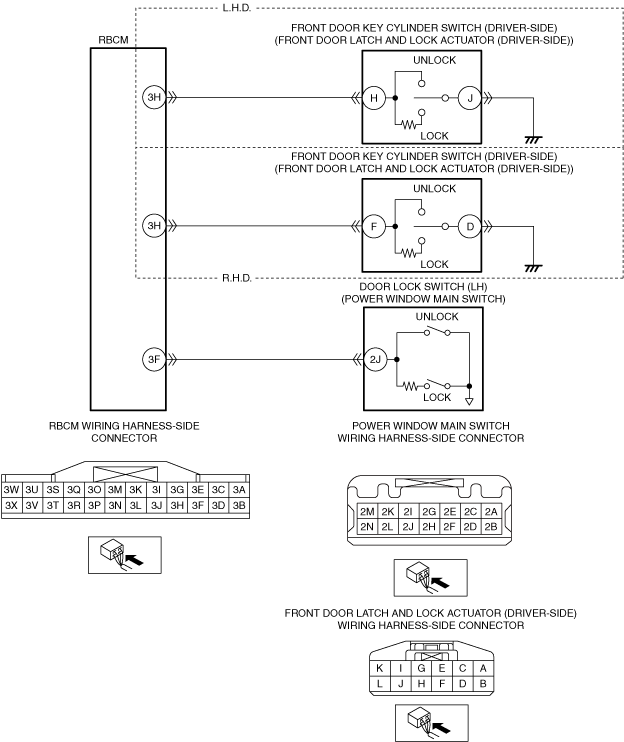

Description	DOOR LOCK DOES NOT OPERATE
