FRONT BUMPER SLIDER REMOVAL/INSTALLATION

id091000030200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

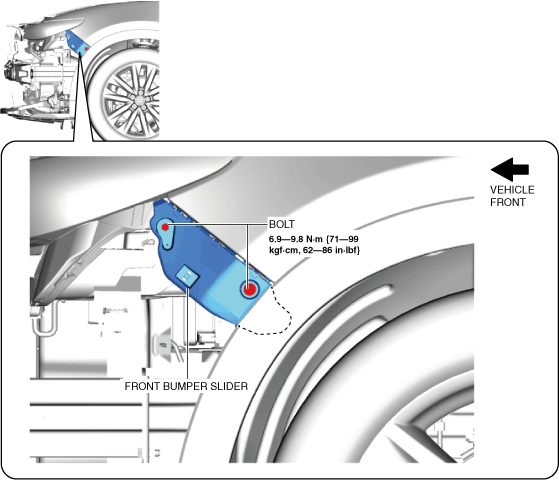

4.  Remove the bolts.

ac9uuw00005778

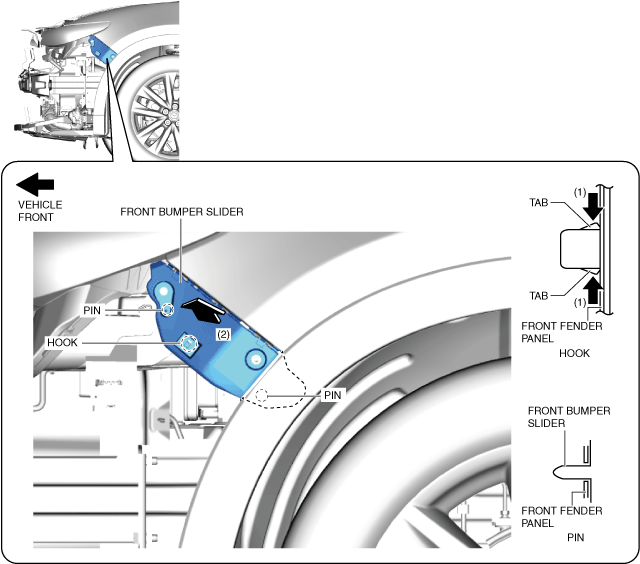

5.  While pressing the front bumper slider tabs in the direction of arrows (1) shown in the figure, move the front bumper slider in the direction of arrow (2) and pull the hook and pins out of the front fender panel.

ac9uuw00005779

6.  Remove the front bumper slider.

7.  Install in the reverse order of removal.
