ENERGY-ABSORBING FORM REMOVAL/INSTALLATION

id091000888800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

4.  Remove the fasteners.

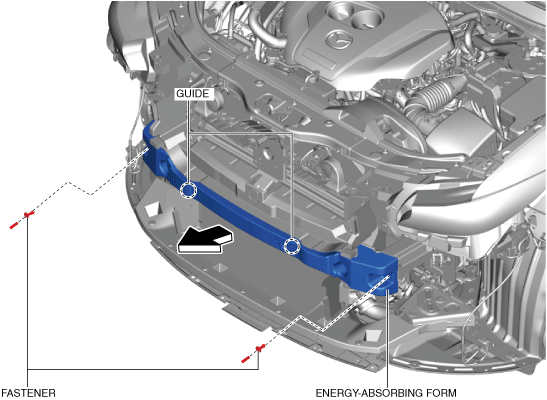

ac9wzw00004431

5.  Pull the energy-absorbing form in the direction of the arrow shown in the figure while detaching guides.

6.  Install in the reverse order of removal.
