BUMPER STIFFENER LOWER REMOVAL/INSTALLATION

id091000888900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

4.  Remove the fasteners.

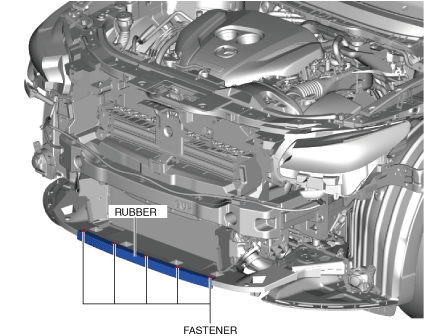

ac9wzw00005612

5.  Remove the rubber.

6.  Remove the fastener.

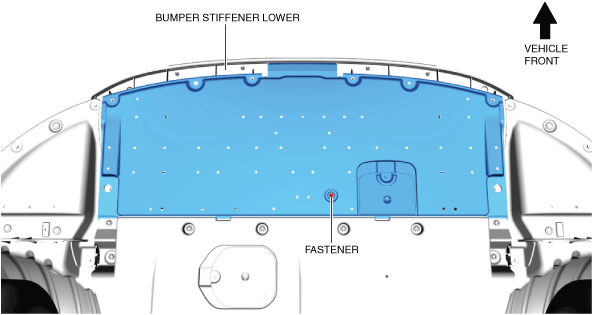

ac9uuw00005890

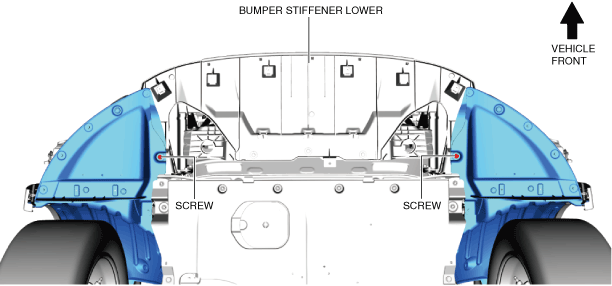

7.  Remove the screws.

ac9uuw00005891

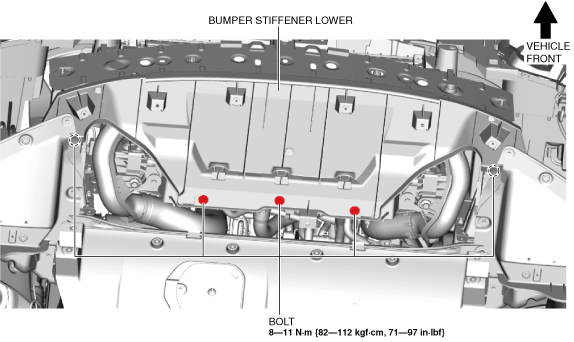

8.  Remove the bolts.

ac9uuw00005892

9.  While pulling the bumper stiffener lower in the direction of arrow (1) shown in the figure, pull the hooks in the direction of arrow (2), and detach the bumper stiffener lower hooks from the shroud panel.

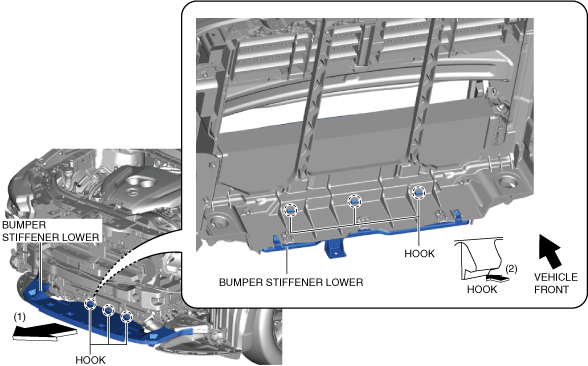

ac9wzw00005613

10.  Remove the hooks shown in the figure and detach the bumper stiffener lower from the shroud panel.

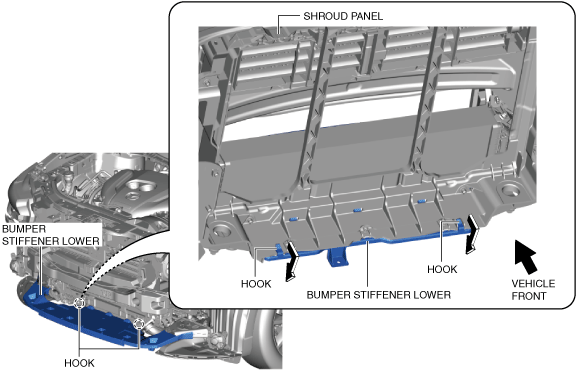

ac9wzw00005614

11.  Remove the bumper stiffener lower in the direction of the arrow shown in the figure.

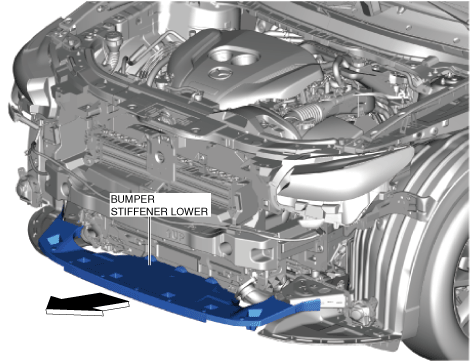

ac9wzw00005615

12.  Install in the reverse order of removal.
