REAR DOOR CHECKER REMOVAL/INSTALLATION

id091100520700

1.  Fully close the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

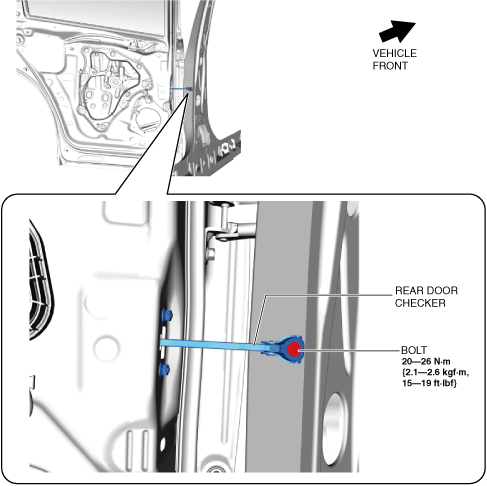

5.  Remove the bolt.

ac9uuw00005737

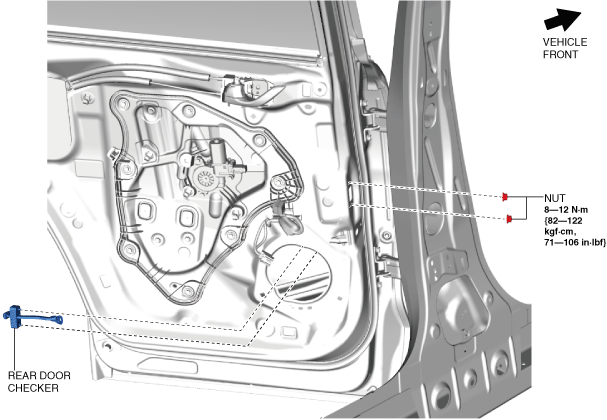

6.  Remove the nuts.

ac9uuw00005738

7.  Pull out the rear door checker from the rear door speaker installation hole.

8.  Install in the reverse order of removal.
