DOOR ADJUSTMENT

id091100521100

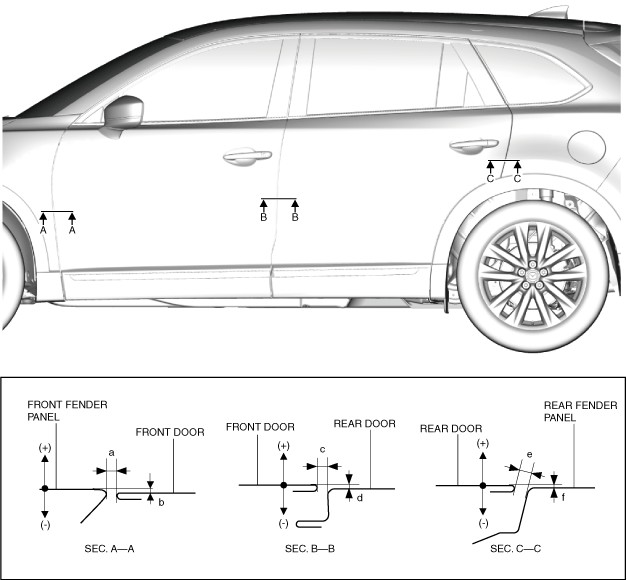

1. Measure the gap and height difference between the door and the body.

ac9uuw00005746

Standard clearance

a: 2.8—4.8 mm {0.12—0.18 in}

b: –1.5—0.5 mm {–0.05—0.01 in}

c: 2.8—4.8 mm {0.12—0.18 in}

d: –1.0—1.0 mm {–0.039—0.039 in}

e: 2.8—4.8 mm {0.12—0.18 in}

f: –1.0—1.0 mm {–0.039—0.039 in}

• If the measured value exceeds the standard clearance, adjust the door using the following procedure:

1. Loosen the door hinge installation bolts, and reposition the door. (See FRONT DOOR REMOVAL/INSTALLATION.) (See REAR DOOR REMOVAL/INSTALLATION.)

2. Tighten the door hinge installation bolts and nut. (See FRONT DOOR REMOVAL/INSTALLATION.) (See REAR DOOR REMOVAL/INSTALLATION.)

3. Verify that the gap and height difference between the door and the body is within the specification.

2. Verify that the door opens/closes smoothly.

3. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.

4. If the front door is adjusted, perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
