POWER LIFTGATE (PLG) BUZZER REMOVAL/INSTALLATION

id091100804200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

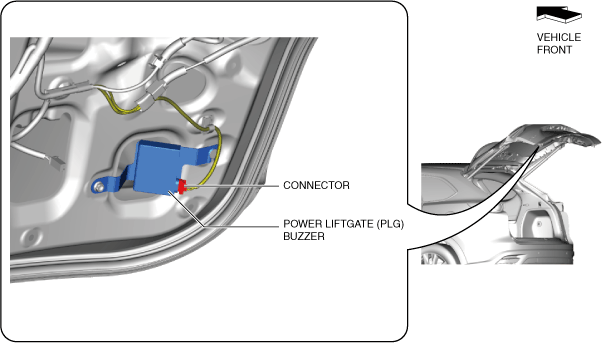

3.  Disconnect the connector.

ac9uuw00005747

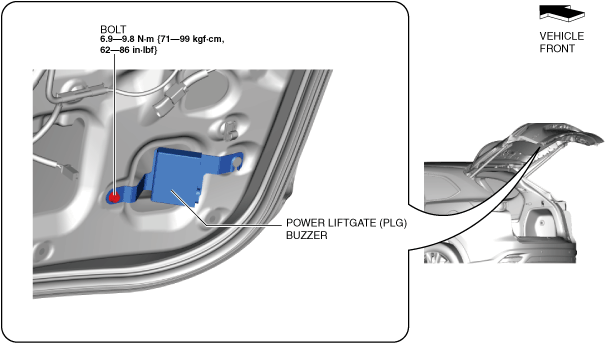

4.  Remove the bolt.

ac9uuw00005748

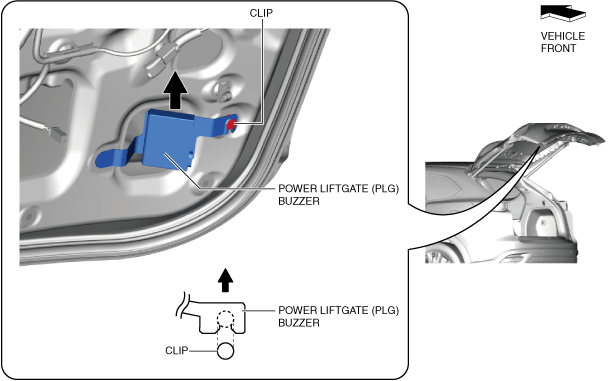

5.  Move the power liftgate (PLG) buzzer in the direction of the arrow shown in the figure and remove it.

ac9uuw00005749

6.  Remove the power liftgate (PLG) buzzer.

7.  Install in the reverse order of removal.
