POWER LIFTGATE (PLG) FRONT SWITCH INSPECTION

id091100807000

Note

•  For the power liftgate (PLG) front switch removal/installation, refer to the cluster switch removal/installation. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

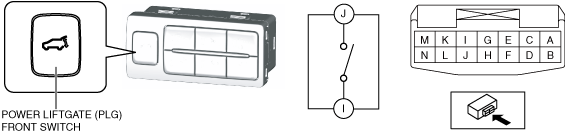

4.  Verify that the continuity between the power liftgate (PLG) front switch terminals is as indicated in the table.

ac9uuw00007390

ac9uuw00007391

•  If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
