POWER WINDOW SUBSWITCH INSPECTION

id091200002300


Auto-open/close Function For All Windows

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

3.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Connect the power window subswitch connector.

5.  Measure the voltage at each terminal.

•  If the voltage is not as specified in the terminal voltage table, inspect the parts under “Inspection item(s)” and related wiring harnesses.
?  If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window subswitch.


Terminal voltage table (reference)

am6xuw00005593

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)
A
Serial communication
Power window main switch
Because this terminal is for communication, integrity determination by terminal voltage is not possible
•  Power window subswitch
•  Related wiring harness
C
Power supply (passenger's side)
P.WINDOW2 25 A fuse
Under any condition
B+
•  P.WINDOW2 25 A fuse
•  Related wiring harness
Power supply (LR/RR)
P.WINDOW3 30 A fuse
Under any condition
B+
•  P.WINDOW3 30 A fuse
•  Related wiring harness
D
Pulse 2
Power window motor
Door glass operating
Wave pattern
(See Inspection using an oscilloscope (reference).)
•  Power window motor
•  Related wiring harness
F
Pulse 1
Power window motor
Door glass operating
Wave pattern
(See Inspection using an oscilloscope (reference).)
•  Power window motor
•  Related wiring harness
H
Close output
Power window motor
Door glass closing
B+
•  Power window motor
•  Related wiring harness
While door glass is closing for approx. 40 s after ignition is switched OFF (LOCK) from ON
B+
Other
1.0 or less
I
Open output
Power window motor
Door glass opening
B+
•  Power window motor
•  Related wiring harness
While door glass is opening for approx. 40 s after ignition is switched OFF (LOCK) from ON
B+
Other
1.0 or less
J
Power supply
Power window motor
While the ignition is switched ON (engine on or off) or approx.
40 s after ignition switched OFF (LOCK) from ON
B+
•  Power window motor
•  Related wiring harness
Switch the ignition OFF (LOCK)
1.0 or less
K
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness
L
Sensor ground
Power window motor
Under any condition
1.0 or less
•  Power window motor
•  Related wiring harness


Inspection using an oscilloscope (reference)

am6xuw00005596
•  Terminal:
D, F(+) ? ground (-)
•  Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range


Auto-open/close Function for Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

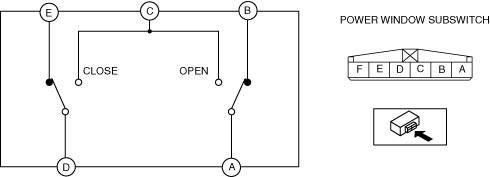

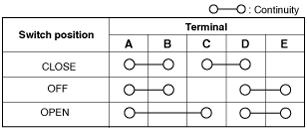

3.  Verify that the continuity between the power window subswitch terminals is as indicated in the table.

ac9uuw00009400
•  If not as indicated in the table, replace the power window subswitch.
ac5wzw00001367
