SECOND-ROW SEAT WARMER UNIT INSPECTION
id091300702400
Simple Inspection
1. Place a cooling agent on the seat cushion (thermistor).
2. Operate the seat warmer switch to turn on the seat warmer.
3. Touch the seat cushion and the seat back to verify a temperature increase.
4. If a temperature increase cannot be verified, go to the resistance inspection. (See Resistance Inspection (VIN : JMZ TB*****# 500001-699999, JM5 TC*****# 200001-399999, JM7 TC*****# 200001-399999).)
Resistance Inspection (VIN : JMZ TB*****# 500001-699999, JM5 TC*****# 200001-399999, JM7 TC*****# 200001-399999)
LH-side
-
Seat cushion side
-
1. Switch the ignition to off.
3. Disconnect the second-row seat warmer unit (LH) connector.

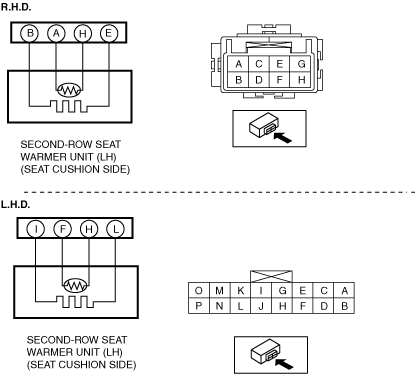

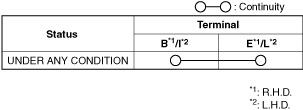

4. Inspect for continuity between the second-row seat warmer unit (LH) connector terminal B (R.H.D.)/ I (L.H.D.) and E (R.H.D.)/ L (L.H.D.).
-
5. Measure the resistance between the second-row seat warmer unit (LH) connector terminal A (R.H.D.)/ F (L.H.D.) and H, and verify that the condition is as indicated in the table.
-
-
Seat back side
-
1. Switch the ignition to off.
3. Disconnect the second-row seat warmer unit (LH) connector.
4. Disconnect the second-row seat warmer unit (LH) connector.
5. Inspect for continuity between the second-row seat warmer unit (LH) connector (short cord) terminal A and B.
-
RH-side
-
Seat cushion side
-
1. Switch the ignition to off.
2. Disconnect the second-row seat warmer unit (RH) connector.

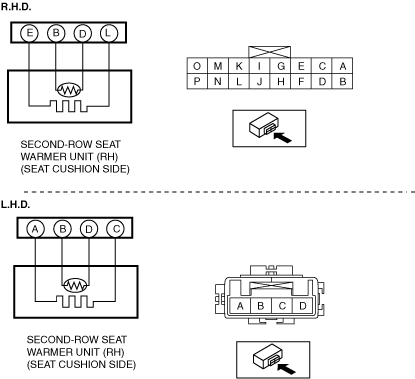

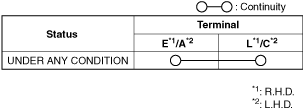

4. Inspect for continuity between the second-row seat warmer unit (RH) connector (short cord) terminal E (R.H.D.)/ A (L.H.D.) and L (R.H.D.)/ C (L.H.D.).
-
5. Measure the resistance between the second-row seat warmer unit (RH) connector terminal B and D, and verify that the condition is as indicated in the table.
-
-
Seat back side
-
1. Switch the ignition to off.
3. Disconnect the second-row seat warmer unit (RH) connector.
4. Inspect for continuity between the second-row seat warmer unit (RH) connector (short cord) terminal A and B.
-
Resistance Inspection (VIN : JMZ TB*****# 700001-, JM5 TC*****# 400001-, JM7 TC*****# 400001-)
LH-side
-
Seat cushion side
-
1. Switch the ignition to off.
3. Disconnect the second-row seat warmer unit (LH) connector.

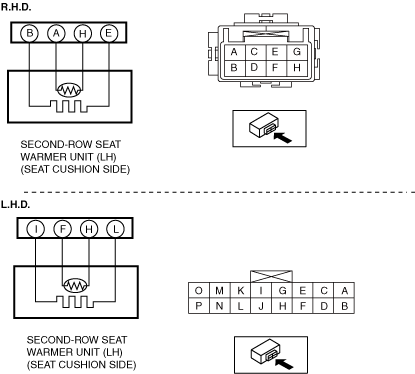

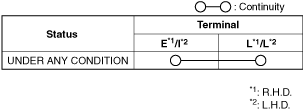

4. Inspect for continuity between the second-row seat warmer unit (LH) connector terminal E (R.H.D.)/ I (L.H.D.) and L.
-
5. Measure the resistance between the second-row seat warmer unit (LH) connector terminal B (R.H.D.)/ F (L.H.D.) and D (R.H.D.)/ H (L.H.D.), and verify that the condition is as indicated in the table.
-
-
Seat back side
-
1. Switch the ignition to off.
3. Disconnect the second-row seat warmer unit (LH) connector.
4. Disconnect the second-row seat warmer unit (LH) connector.
5. Inspect for continuity between the second-row seat warmer unit (LH) connector (short cord) terminal A and B.
-
RH-side
-
Seat cushion side
-
1. Switch the ignition to off.
2. Disconnect the second-row seat warmer unit (RH) connector.

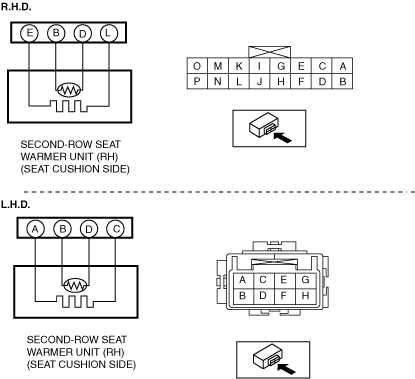

4. Inspect for continuity between the second-row seat warmer unit (RH) connector (short cord) terminal F and E.
-
5. Measure the resistance between the second-row seat warmer unit (RH) connector terminal L and H, and verify that the condition is as indicated in the table.
-
-
Seat back side
-
1. Switch the ignition to off.
3. Disconnect the second-row seat warmer unit (RH) connector.
4. Inspect for continuity between the second-row seat warmer unit (RH) connector (short cord) terminal A and B.
-
