THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION

id091300967200

1.  Remove the following parts:

(1)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk side pocket(See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

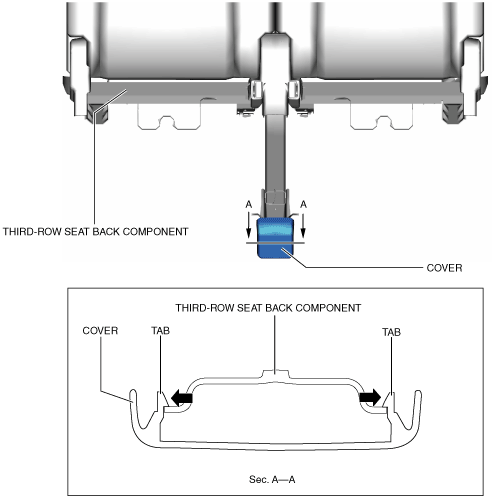

2.  Move the tabs in the direction of the arrows shown in the figure, and remove the cover.

atrizt00000047

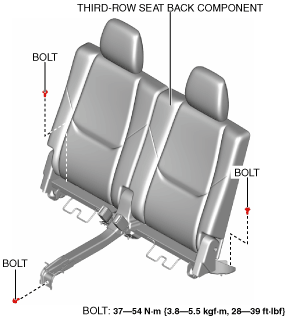

3.  Remove the bolts.

atrizt00000048

4.  Remove the third-row seat back component.

5.  Install in the reverse order of removal.
